  • Mechanical Directional Control Valves
  • Manual Operated
  • 2 Way 2 Position Normally Closed
  • Pull Type
  • The valve blocks flow from (1) to (2) until an operator pulls the shaft outward
  • The bias spring allows for backpressure at (2) before the valve will open
  • Note: pressure at port (2) will directly act on the spool and spring
  • Port (2) is intended to be a tank port only
  • Soft seat for untra low leakage or Hardened parts for long life
  • Industry common cavity
  • Corrosion resistant
  • Optional bias springs for backpressure application flexibility
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealSpring Bias PressurePriceOrder Qty.
7010568PB-MCA-00-00751235003/4-16Buna75 PSI $26.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012318PB-MCA-00-01501235003/4-16Buna150 PSI $26.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7010573PB-MCA-0D-00751235003/4-16Buna75 PSI $25.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012319PB-MCA-0D-01501235003/4-16Buna150 PSI $26.50 / EACH
Usually ships in 4 week(s).
Expedite available.

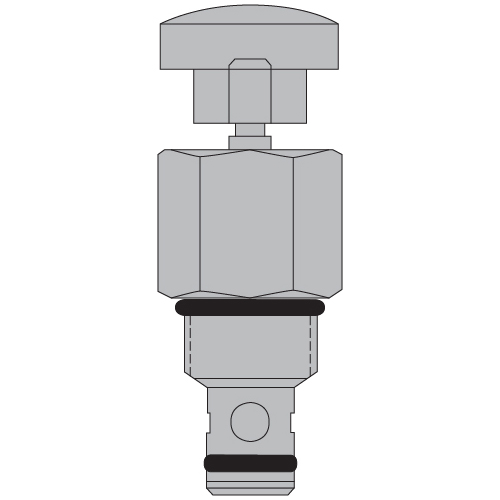

7012320PB-MCA-0K-00751235003/4-16Buna75 PSI $29.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012321PB-MCA-0K-01501235003/4-16Buna150 PSI $29.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012322PB-MCA-1D-00751235003/4-16Buna75 PSI $29.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012323PB-MCA-1D-01501235003/4-16Buna150 PSI $29.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012324PB-MCA-2D-00751235003/4-16Viton75 PSI $31.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012325PB-MCA-2D-01501235003/4-16Viton150 PSI $31.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012326PB-MCA-3D-00751235003/4-16Buna75 PSI $30.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012327PB-MCA-3D-01501235003/4-16Buna150 PSI $30.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012328PB-MCA-4D-00751235003/4-16Viton75 PSI $33.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012329PB-MCA-4D-01501235003/4-16Viton150 PSI $33.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012330PB-MCA-A0-00751235003/4-16Buna75 PSI $27.25 / EACH
Usually ships in 4 week(s).
Expedite available.
