DIRECT ACTING CHECK VALVE - STANDARD
- Mechanical Directional Control valves
- Direct Acting Chceck Valves
- Standard
- The valve allows free flow from (2) to (1) or (1) to (2), and blocks flow from (1) to (2) or (2) to (1)
- The cartridge has a fully guided check poppet or guided hardened ball, which are spring-biased closed, until pressure is applied at (2) to open to (1)
- Hardened parts for long life and low leakage
- Optional bias springs for backpressure application flexibility
- Fully guided poppet assembly
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Crack Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

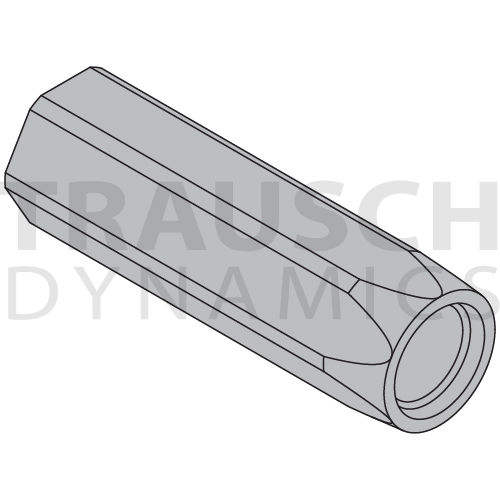

 | 7011350 | IM-CVA-00-0005 | 8 | 3000 | 5/8-18 | Buna | 5 PSI | $34.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011351 | IM-CVA-00-0025 | 8 | 3000 | 5/8-18 | Buna | 25 PSI | $34.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011352 | IM-CVA-00-0050 | 8 | 3000 | 5/8-18 | Buna | 50 PSI | $34.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011353 | IM-CVA-00-0075 | 8 | 3000 | 5/8-18 | Buna | 75 PSI | $34.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

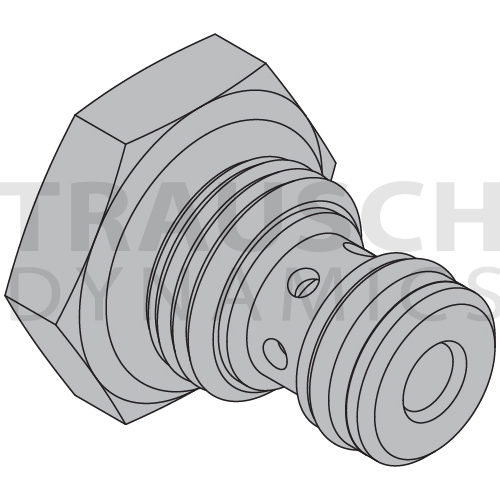

 | 7010404 | MA-CVA-00-0005 | 5 | 3500 | 5/8-18 | Buna | 5 PSI | $17.50 / EACH In stock - Ships same day | |||
 | 7010407 | MA-CVA-00-0020 | 5 | 3500 | 5/8-18 | Buna | 20 PSI | $17.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010414 | MA-CVA-00-0050 | 5 | 3500 | 5/8-18 | Buna | 50 PSI | $17.50 / EACH In stock - Ships same day | |||
 | 7010644 | MA-CVA-V0-0020 | 5 | 3500 | 5/8-18 | Viton | 20 PSI | $20.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010647 | HB-CVA-00-0005 | 10 | 4350 | 3/4-16 | Buna | 5 PSI | $26.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010648 | HB-CVA-00-0010 | 10 | 4350 | 3/4-16 | Buna | 10 PSI | $26.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010650 | HB-CVA-00-0030 | 10 | 4350 | 3/4-16 | Buna | 30 PSI | $26.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010651 | HB-CVA-00-0070 | 10 | 4350 | 3/4-16 | Buna | 70 PSI | $26.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

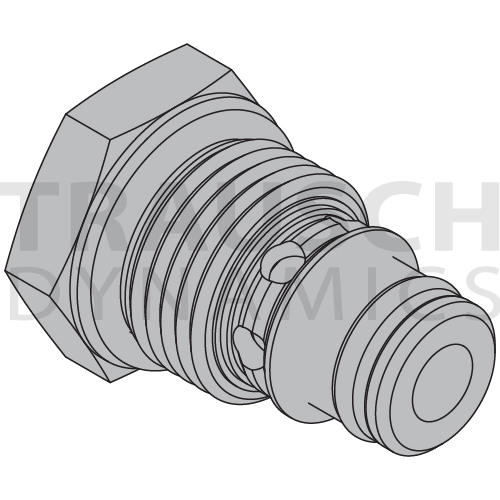

 | 7010652 | HB-CVA-V0-0005 | 10 | 4350 | 3/4-16 | Viton | 5 PSI | $29.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010653 | HB-CVA-V0-0010 | 10 | 4350 | 3/4-16 | Viton | 10 PSI | $29.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010654 | HB-CVA-V0-0030 | 10 | 4350 | 3/4-16 | Viton | 30 PSI | $29.25 / EACH Usually ships in 5 week(s). Expedite available. |
