SINGLE PILOT OPERATED CHECK VALVES
- Accessories
- Check Valves
- Single Pilot Operated Check Valves
- Typical application for this valve is load holding when pump is off

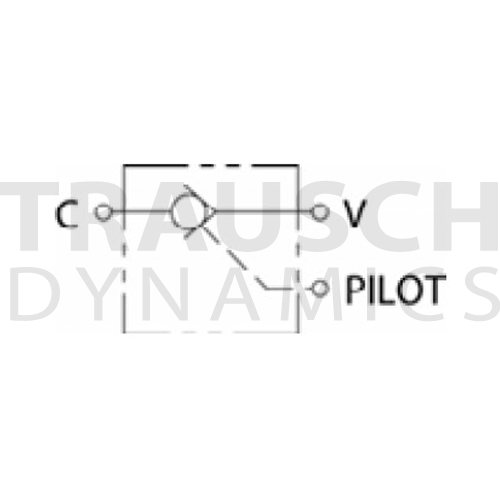

- The valve allows flow to pass from (V) to (C) and blocks flow from (C) to (V)
- When pilot pressure is applied to pilot port the valve allows flow from (C) to (V)
- The valve has a 6.7:1 pilot ratio, so at least 0.149 of the load pressure is required at the (PILOT) port to open the flow passage to allow flow from ports (C)
- The check is spring-baised at 50 PSI to assure holding in static or no-load conditions
- Hardened internal parts for long life
- Anodized aluminum body for corrosion protection

Image | Item # | Mfr. Number | Series | Seal | Thread Size | Port Size | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|
![]() | 7013030 | PS-POC-B-N | Power | Buna | 3/4-16 | 1/4 NPTF | $76.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

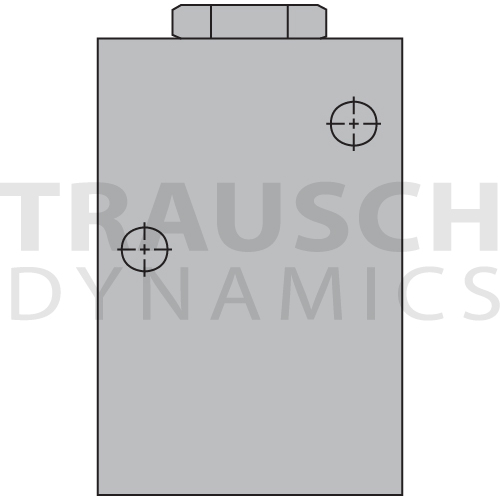

![]() | 7013026 | PS-POC-B-S | Power | Buna | 3/4-16 | #6 SAE | $74.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7013031 | PS-POC-V-N | Power | Viton | 3/4-16 | 1/4 NPTF | $79.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7013032 | PS-POC-V-S | Power | Viton | 3/4-16 | #6 SAE | $78.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7013009 | DS-POC-B-N | Delta | Buna | 7/8-14 | 3/8 NPTF | $77.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7013028 | DS-POC-B-S | Delta | Buna | 7/8-14 | #8 SAE | $75.50 / EACH Usually ships in 5 week(s). Expedite available. | |||

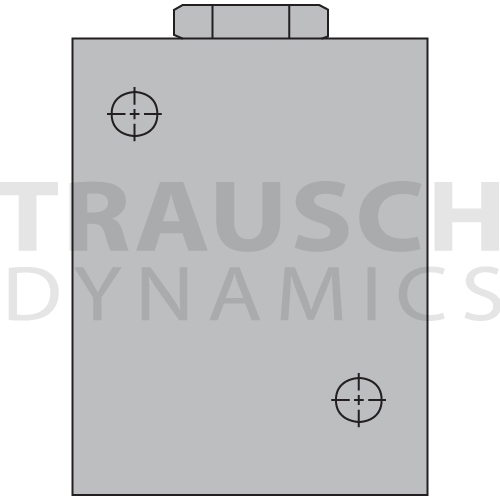

![]() | 7013016 | DS-POC-V-N | Delta | Viton | 7/8-14 | 3/8 NPTF | $80.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7013017 | DS-POC-V-S | Delta | Viton | 7/8-14 | #8 SAE | $78.50 / EACH Usually ships in 5 week(s). Expedite available. |
