LSP101 SERIES
- The LSP101 Series low pressure aluminum sight plug inserts through a clearance hole and utilizes a lock nut assembled from within the reservoir to seal on a flange gasket
- A clear glass sight provides good open view visibility with options to further enhance visibility by accessorizing the sight plug with combinations of reflector and float ball options
- Access to inside of reservoir is required to secure the lock nut
- Box quantities may apply
- Aluminum construction
- Buna N seals
- Soda lime glass sight
- Stainless Steel reflector (when applicable)
- Cork float ball
- Maximum operating temperature up to 180°F
- CAUTION:
- Do not use an impact wrench to install a sight plug
- Not recommended for steam applications
- Scratched glass significantly reduces the pressure rating of the sight plug
| Image | Item # | Mfr. Number | View | NPT Threads | Max PSI @ 69F | Hex | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

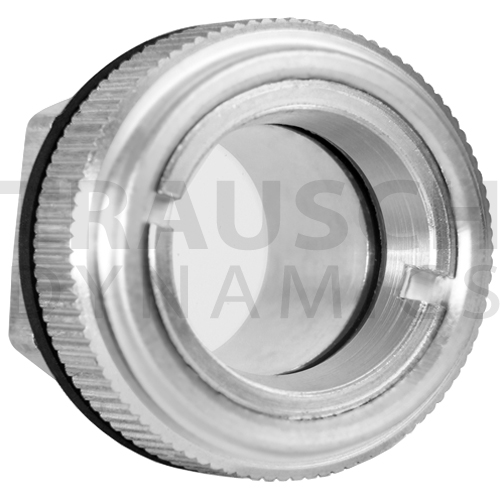

 | 1232712 | LSP101-04 | Open | 3/4"-27 | 50 | 0.88" | $10.47 / EACH Usually ships in 3 day(s) |
| ||||

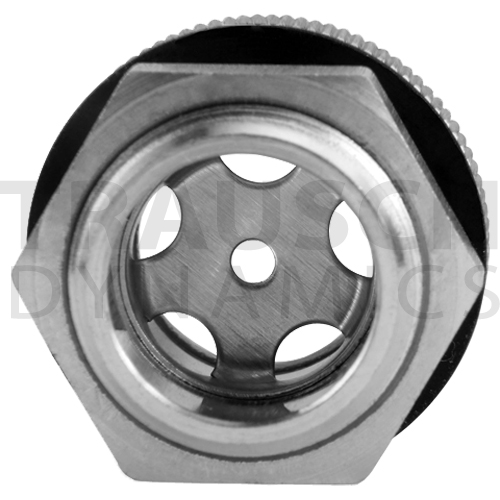

 | 1232713 | LSP101-04-01 | Reflector | 3/4"-27 | 50 | 0.88" | $11.47 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232714 | LSP101-06 | Open | 1"-24 | 50 | 1.12" | $13.53 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232715 | LSP101-06-01 | Reflector | 1"-24 | 50 | 1.12" | $13.95 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232716 | LSP101-08 | Open | 1 1/4"-24 | 25 | 1.38" | $17.04 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232717 | LSP101-08-01 | Reflector | 1 1/4"-24 | 25 | 1.38" | $17.61 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232718 | LSP101-13 | Open | 1 7/8"-24 | 25 | 2" | $45.54 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232719 | LSP101-13-01 | Reflector | 1 7/8"-24 | 25 | 2" | $50.05 / EACH Usually ships in 3 day(s) |
| ||||
 | 1232720 | LSP101-17 | Open | 2 3/8"-24 | 10 | 2.62" | $60.00 / EACH Usually ships in 3 day(s) |
| ||||
