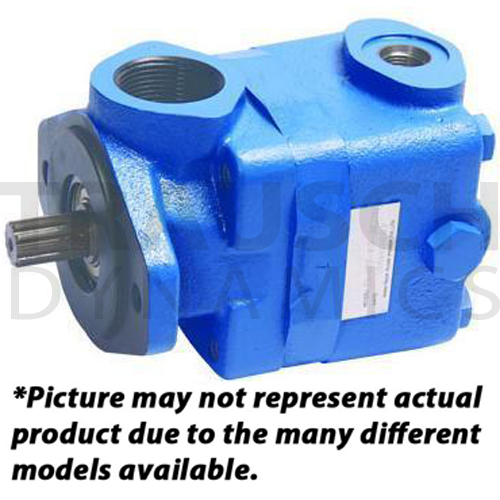

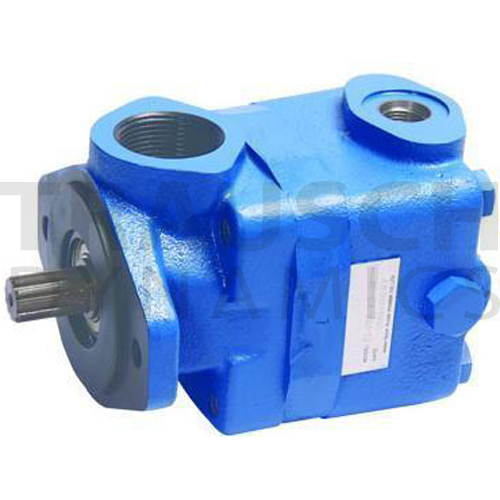

CLOCKWISE ROTATION
- Direct Interchange for Vickers V20
- Balanced Vane Type
- Fixed Displacement
- Quieter operation than Gear Pump
- High Efficiency
- 100% Tested
- *Not all vane pumps available are shown. Call and ask to speak to a sales represetative if the model you seek is not shown here.
| Image | Item # | Mfr. Number | Rotation | in3 Per Rev. | GPM @ 1200 RPM | Max. PSI | Max. RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6303348 | V201S6S62A11 | CW | 1.19 | 6 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303349 | V201S7S62A11 | CW | 1.39 | 7 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303350 | V201S8S62A11 | CW | 1.62 | 8 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303351 | V201S9S62A11 | CW | 1.81 | 9 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303352 | V201S10S62A11 | CW | 1.93 | 10 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303353 | V201S11S62A11 | CW | 2.22 | 11 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303354 | V201S12S62A11 | CW | 2.38 | 12 GPM | 2200 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303355 | V201S13S62A11 | CW | 2.59 | 13 GPM | 2200 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet Opposite Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303356 | V201S6S62B11 | CW | 1.19 | 6 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303357 | V201S7S62B11 | CW | 1.39 | 7 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303358 | V201S8S62B11 | CW | 1.62 | 8 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303359 | V201S9S62B11 | CW | 1.81 | 9 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303360 | V201S10S62B11 | CW | 1.93 | 10 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303361 | V201S11S62B11 | CW | 2.22 | 11 GPM | 2500 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day | |||
 | 6303362 | V201S12S62B11 | CW | 2.38 | 12 GPM | 2200 PSI | 1800 RPM | #20 SAE O-Ring | #12 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8" 9-Tooth Spline | $277.07 / EACH Ships next business day |
