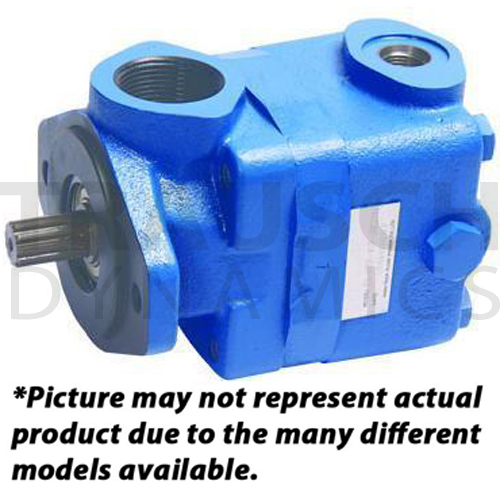

CLOCKWISE ROTATION
- Direct Interchange for Vickers V10
- Balanced Vane Type
- Fixed Displacement
- Quieter operation than Gear Pump
- High Efficiency
- 100% Tested
- *Not all vane pumps available are shown. Call and ask to speak to a sales represetative if the model you seek is not shown here.
| Image | Item # | Mfr. Number | Rotation | in3 Per Rev. | GPM @ 1200 RPM | Max. PSI | Max. RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6302883 | V101S1S11A20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303027 | V101S2S11A20 | CW | 0.4 | 2 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303028 | V101S3S11A20 | CW | 0.6 | 3 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303029 | V101S4S11A20 | CW | 0.8 | 4 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303030 | V101S5S11A20 | CW | 1 | 5 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303031 | V101S6S11A20 | CW | 1.19 | 6 GPM | 2200 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303032 | V101S7S11A20 | CW | 1.39 | 7 GPM | 2000 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet Opposite Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303033 | V101S1S11B20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303034 | V101S2S11B20 | CW | 0.4 | 2 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303035 | V101S3S11B20 | CW | 0.6 | 3 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303036 | V101S4S11B20 | CW | 0.8 | 4 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303037 | V101S5S11B20 | CW | 1 | 5 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303038 | V101S6S11B20 | CW | 1.19 | 6 GPM | 2200 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303039 | V101S7S11B20 | CW | 1.39 | 7 GPM | 2000 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet 90 Deg CCW from Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day | |||
 | 6303040 | V101S1S11C20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | #16 SAE O-Ring | #08 SAE O-Ring | Outlet In Line with Inlet | 5/8-9 Splined Shaft | $242.43 / EACH Ships next business day |
