CLOCKWISE ROTATION

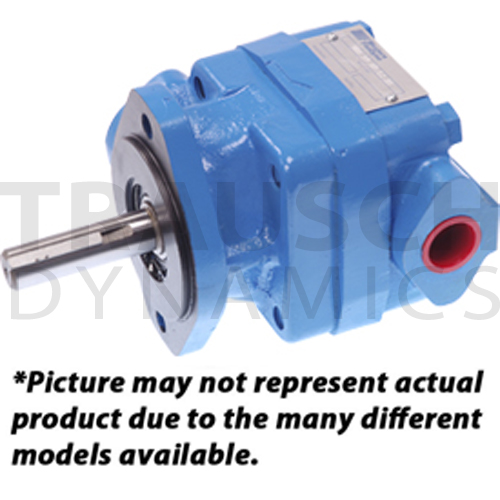

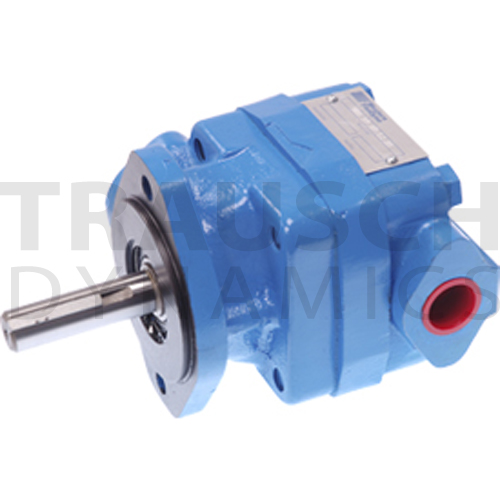

- Direct Interchange for Vickers V10
- Balanced Vane Type
- Fixed Displacement
- Quieter operation than Gear Pump
- High Efficiency
- 100% Tested
- *Not all vane pumps available are shown. Call and ask to speak to a sales represetative if the model you seek is not shown here.

Image | Item # | Mfr. Number | Rotation | in3 Per Rev. | GPM @ 1200 RPM | Max. PSI | Max. RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 6302100 | V101P1P1A20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302123 | V101P2P1A20 | CW | 0.4 | 2 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302146 | V101P3P1A20 | CW | 0.6 | 3 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302169 | V101P4P1A20 | CW | 0.8 | 4 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302192 | V101P5P1A20 | CW | 1 | 5 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302215 | V101P6P1A20 | CW | 1.19 | 6 GPM | 2200 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302238 | V101P7P1A20 | CW | 1.39 | 7 GPM | 2000 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet Opposite Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302147 | V101P1P1B20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302101 | V101P2P1B20 | CW | 0.4 | 2 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302508 | V101P3P1B20 | CW | 0.6 | 3 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302170 | V101P4P1B20 | CW | 0.8 | 4 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6105054 | V101P5P1B20 | CW | 1 | 5 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302902 | V101P6P1B20 | CW | 1.19 | 6 GPM | 2200 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302468 | V101P7P1B20 | CW | 1.39 | 7 GPM | 2000 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet 90 Deg CCW from Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day | |||
![]() | 6302513 | V101P1P1C20 | CW | 0.2 | 1 GPM | 2500 PSI | 1800 RPM | 1" NPT | 1/2" NPT | Outlet In Line with Inlet | 3/4" Dia x 3/16" Key x 1-3/4" Length Keyed Shaft | $242.43 / EACH Ships next business day |
