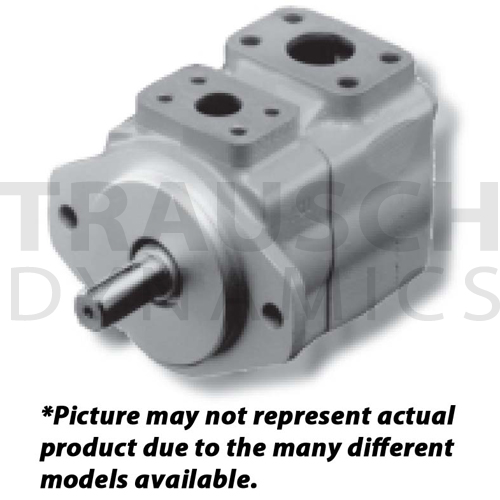

7/8" KEYED SHAFT VANE PUMPS 2.32" LONG - SAE B, VICKERS REPLACEMENT PUMPS
- Low Noise Characteristics
- 12 Vane Systems - Low Amplitude Flow Pulsations
- Long Life
- Inlet and outlet ports can be oriented in four different positions relative to each other

Image | Item # | Mfr. Number | Rotation | In3 Per Rev. | GPM @ RPM 1200 | Max PSI | Max RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 6301001 | 20V5A1A22R | CW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301002 | 20V8A1A22R | CW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301004 | 20V11A1A22R | CW | 2.2 | 11 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301005 | 20V12A1A22R | CW | 2.5 | 12 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301006 | 20V14A1A22R | CW | 2.8 | 14 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301007 | 20V5A1A22L | CCW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301008 | 20V8A1A22L | CCW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301010 | 20V11A1A22L | CCW | 2.2 | 11 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301011 | 20V12A1A22L | CCW | 2.5 | 12 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301012 | 20V14A1A22L | CCW | 2.8 | 14 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301025 | 20V5A1B22R | CW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301026 | 20V8A1B22R | CW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301028 | 20V11A1B22R | CW | 2.2 | 11 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301029 | 20V12A1B22R | CW | 2.5 | 12 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day | |||
![]() | 6301030 | 20V14A1B22R | CW | 2.8 | 14 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" Dia x 3/16" Key x 2.32" Length Keyed Shaft | $537.60 / EACH Ships next business day |
