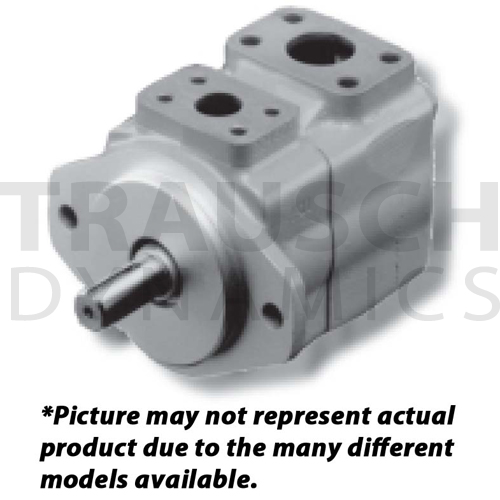

7/8" 13 TOOTH SPLINED SHAFT 1.62" LONG - SAE B, VICKERS REPLACEMENT PUMPS
- Low Noise Characteristics
- 12 Vane Systems - Low Amplitude Flow Pulsations
- Long Life
- Inlet and outlet ports can be oriented in four different positions relative to each other
| Image | Item # | Mfr. Number | Rotation | In3 Per Rev. | GPM @ RPM 1200 | Max PSI | Max RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6301013 | 20V5A151A22R | CW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301014 | 20V8A151A22R | CW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301016 | 20V11A151A22R | CW | 2.2 | 11 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301017 | 20V12A151A22R | CW | 2.5 | 12 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301018 | 20V14A151A22R | CW | 2.8 | 14 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301019 | 20V5A151A22L | CCW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301020 | 20V8A151A22L | CCW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301022 | 20V11A151A22L | CCW | 2.2 | 11 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301023 | 20V12A151A22L | CCW | 2.5 | 12 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301024 | 20V14A151A22L | CCW | 2.8 | 14 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet Opposite Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301037 | 20V5A151B22R | CW | 1.1 | 5 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301038 | 20V8A151B22R | CW | 1.7 | 8 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301040 | 20V11A151B22R | CW | 2.2 | 11 | 3000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301041 | 20V12A151B22R | CW | 2.5 | 12 | 2300 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day | |||
 | 6301042 | 20V14A151B22R | CW | 2.8 | 14 | 2000 | 1800 | #24 code 61 | #12 code 61 | Outlet 90 Deg CCW from Inlet | 7/8" - 13 Splined x 1.62" Length Splined Shaft | $537.60 / EACH Ships next business day |
