7838198

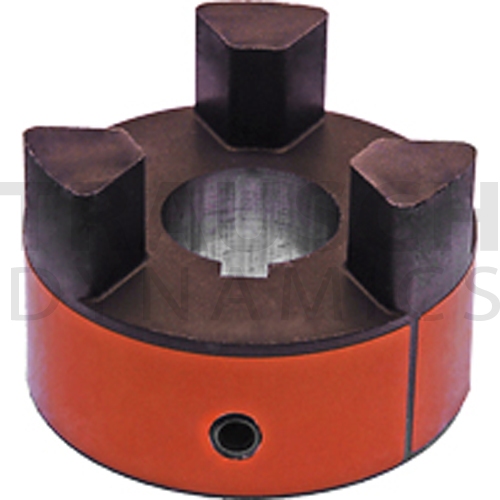

MECHANICAL DRIVE COUPLING HALF, L099, 7/16" SHAFT, 3/32" KEYWAY, 2.835" OVERALL LENGTH, 2.54" OUTSIDE DIAMETER, 0.75" CENTER WIDTH. 1.5 HP CAPACITY @ 300 RPM, 6 HP CAPACITY @ 1200 RPM, 9 HP CAPACITY @ 1800 RPM, 18 HP CAPACITY @ 3600 RPM.
| Size | Shaft | Keyway | Overall Length | Outside Diameter | Center Width | HP Capacity @ 1800 RPM | HP Capacity @3600 RPM |
|---|---|---|---|---|---|---|---|
| L099 | 7/16" | 3/32" | 2.835 | 2.54 | 0.75 | 9 | 18 |
