DOUBLE ACTING
- High strength reinforced alloy reservoir is lightweight and corrosion resistant
- Pressure relief valve for overload protection
- Compact yet powerful air turbo motor is equipped to raise the load to the desired height efficiently, effortlessly, and safely
- Dust cover protection for the release control valve
- Suggested air pressure range: 110-175 PSI / 7.5-12 bar
- Maximum Working Pressure: 10,000 PSI
- All pumps are shipped with oil in the tank
- BVA Catalog

Image | Item # | BVA Model# | Function | Usable Oil Capacity (in3) | Oil Outlet Port | No Load Output Flow Rate (in3/min) | Load Output Flow Rate (in3/min) | Input Air Pressure Required | Air Consumption | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

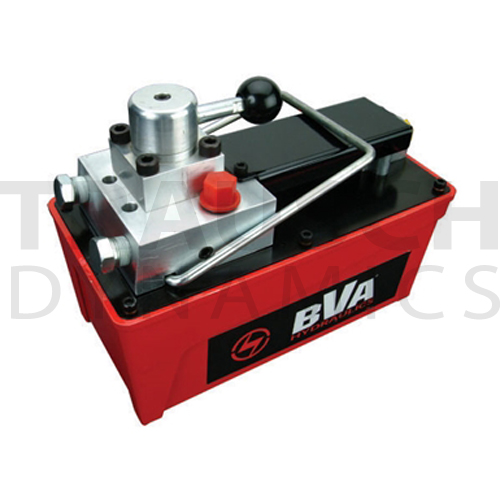

![]() | 8013344 | PA1500M | Double Acting | 91.5 | 3/8" - 18 NPTF | 66 | 11 | 110-175 PSI | 7.8 cfm | Add to cart to see price Usually ships in 1 day(s) | |||

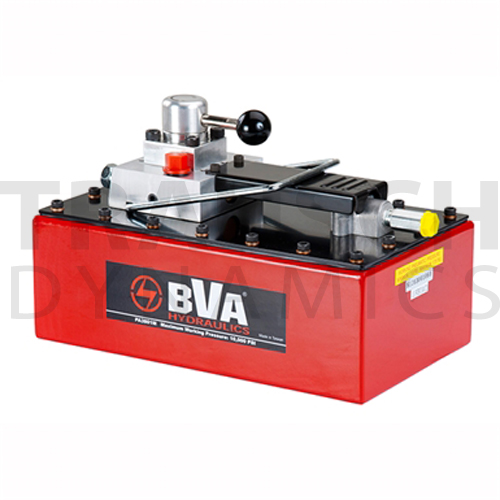

![]() | 8013540 | PA3801M | Double Acting | 231.9 | 3/8" - 18 NPTF | 65 | 11 | 110-175 PSI | 7.8 cfm | Add to cart to see price Usually ships in 1 day(s) | |||

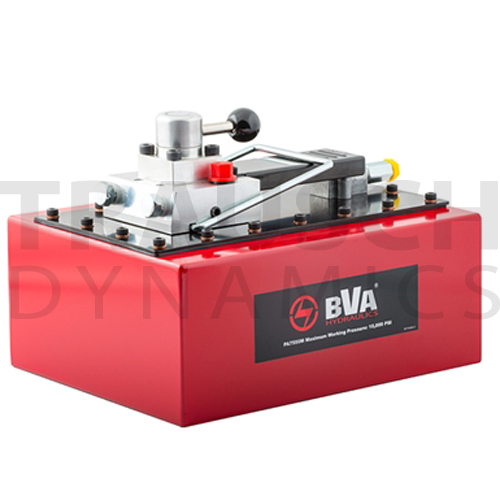

![]() | 8013541 | PA7550M | Double Acting | 460.6 | 3/8" - 18 NPTF | 65 | 11 | 110-175 PSI | 7.8 cfm | Add to cart to see price Usually ships in 1 day(s) |
