  • Low profile for confined spaces
  • Rod wiper helps seal out dirt and contamination
  • Specially designed return spring provides quick retraction and extends the life of the spring
  • Industrail hard chrome plated rod helps prevent scratching and corrosion
  • Rod end is grooved to reduce load slippage
  • Includes high flow coupler and dust cap
  • Maximum Working Pressure: 10,000 PSI / 700 bar
  • BVA 2016 Catalog
*** Slide left / right to view more ***
ImageItem #BVA Model#Capacity (Tons)BoreStrokeRod Dia.Effective Area (in2)Oil Capacity (in3)Collapsed HeightExtended HeightPriceOrder Qty.

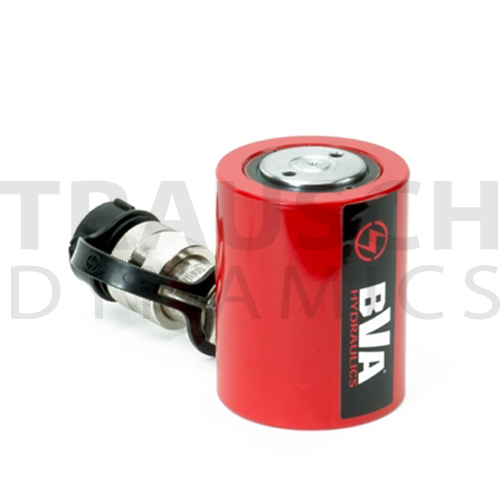

8012709HL100110 Ton1.73"1.5"1.5"2.353.533.48"4.98" Add to cart to see price
Usually ships in 1 day(s)

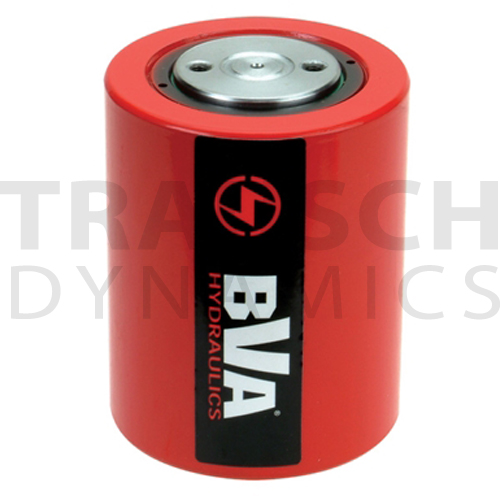

8013013HL200220 Ton2.36"1.75"2"4.377.653.9"5.65" Add to cart to see price
Usually ships in 1 day(s)

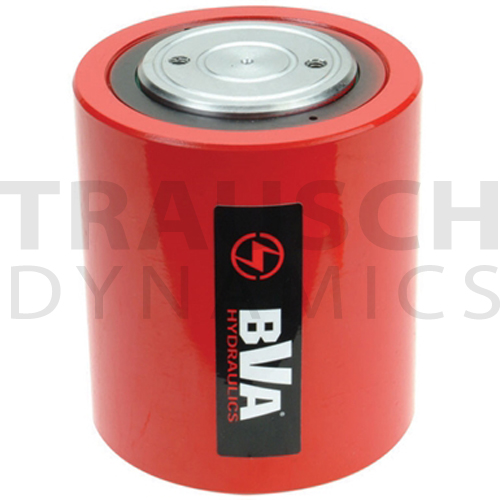

8013016HL300230 Ton2.87"2.44"2.5"6.4915.844.61"7.05" Add to cart to see price
Usually ships in 1 day(s)

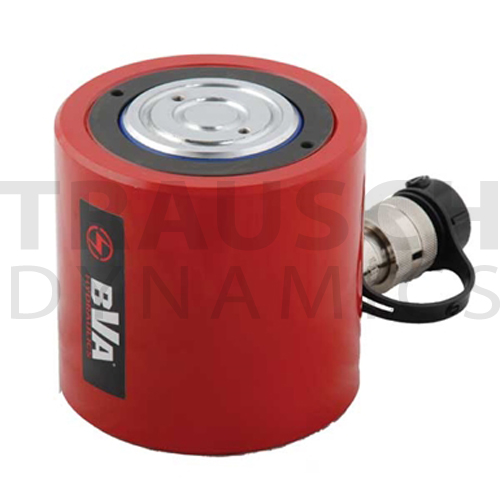

8013304HL500250 Ton3.54"2.36"2.76"9.8723.294.8"7.17" Add to cart to see price
Usually ships in 1 day(s)

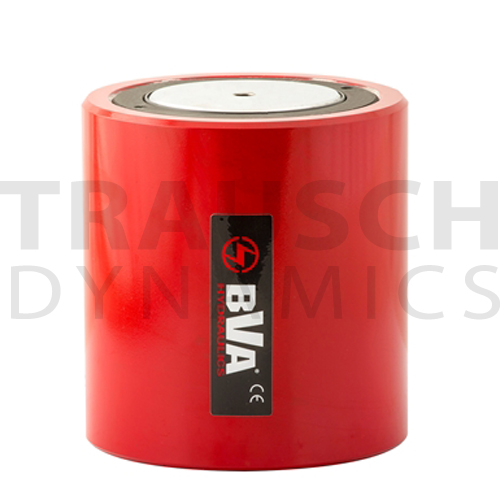

8013512HL6003KK60 Ton4"2.5"3.15"12.5731.45.63"8.13" Add to cart to see price
Usually ships in 1 day(s)

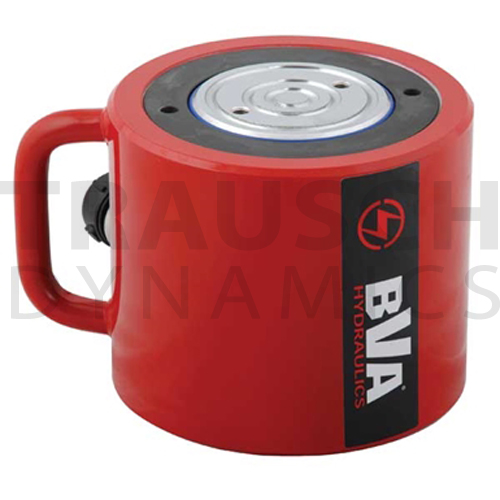

8013305HL10002100 Ton5"2.24"3.54"19.6444.075.55"7.8" Add to cart to see price
Usually ships in 1 day(s)
