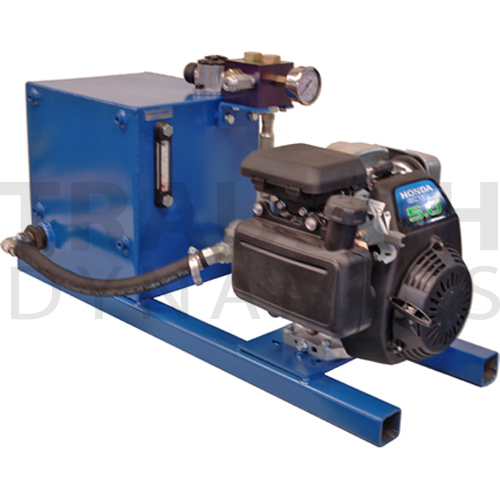

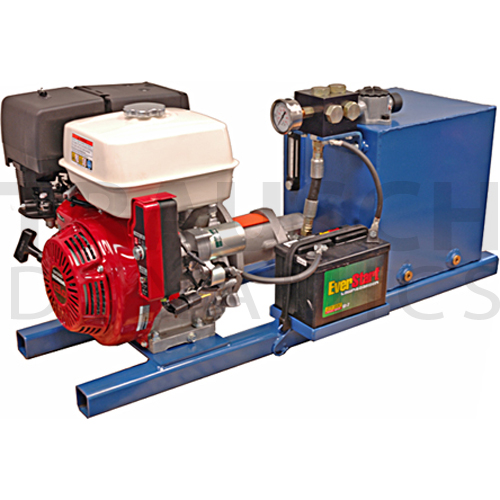

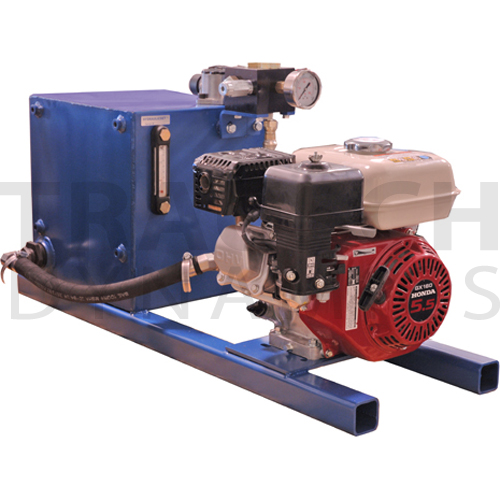

  • Gas Engine Power Units - Honda Engine
  • Battery included on electric start models
  • Unit packed and shipped in quality wooden crate
  • Painted blue
  • Return filter: 10 Micron (filler/breather integral), #12 O-Ring Port
  • Suction filter: 100 Mesh with 5 PSI bypass
  • Ports: #12 O-Ring (Pressure & Tank)
  • Gauge: Liquid filled S.S. Case 0-3000 on 1500 PSI maximum power units, Liquid filled S.S. Case 0-5000 on 3000 PSI maximum power units
  • Tank:10 gallon, fully baffled, 12 gauge steel
  • Level sight/temperature gauge standard
  • Relief Valve: Preset to power units' maximum pressure capability (see chart)
  • Pumps: high performance pressure balanced aluminum body gear pump or rugged cast iron fixed clearance "high-low" pumps
  • Tank drain plugs: #8 O-Ring (x2), use for motor case drains, returns, or drains
  • Fully tested before shipment, engine oil on board
  • Anti-Wear 10 weight hydraulic oil recommended, ATF satisfactory
  • Replacement components available from stock
  • *Indicates the use of a "high-low" pump, high volume at low pressure, low volume at high pressure
*** Slide left / right to view more ***
ImageItem #HPEngine StartPerformance GPM @ PSIPump StyleOil Alert Yes/NoDimensions L x W x HPriceOrder Qty.
95022025Pull1.9 GPM @ 3000 PSIGearYes38.0" x 15.5" x 18.5" $1,449.62 / EACH
Ships next business day
95022015Pull3.9 GPM @ 1500 PSIGearYes38.0" x 15.5" x 18.5" $1,318.18 / EACH
Ships next business day
95022055.5Pull1.9 GPM @ 3000 PSIGearYes38.0" x 15.0" x 18.5" $1,461.48 / EACH
Ships next business day
95022075.5Electric1.9 GPM @ 3000 PSIGearYes38.0" x 17.5" x 18.5" $1,905.42 / EACH
Ships next business day
95022065.5Pull3.9 GPM @ 1500 PSIGearYes38.0" x 15.0" x 18.5" $1,452.58 / EACH
Ships next business day
95022085.5Electric3.9 GPM @ 1500 PSIGearYes38.0" x 17.5" x 18.5" $1,831.78 / EACH
Ships next business day
95022108Pull2.6 GPM @ 3000 PSIGearYes42.0" x 17.5" x 18.5" $1,795.37 / EACH
Ships next business day
95022118Electric2.6 GPM @ 3000 PSIGearYes42.0" x 17.5" x 18.5" $2,094.42 / EACH
Ships next business day
95022098Pull5.8 GPM @ 1500 PSIGearYes42.0" x 17.5" x 18.5" $1,835.29 / EACH
Ships next business day
95022128Electric5.8 GPM @ 1500 PSIGearYes42.0" x 17.5" x 18.5" $2,075.67 / EACH
Ships next business day
950221911Electric3.9 GPM @ 3000 PSIGearYes42.0" x 18.5" x 18.5" $2,331.36 / EACH
Ships next business day
950222011Electric8.0 GPM @ 1500 PSIGearYes42.0" x 18.5" x 18.5" $2,366.54 / EACH
Ships next business day
950222213Electric4.8 GPM @ 2800 PSIGearYes42.0" x 18.5" x 18.5" $2,260.96 / EACH
Ships next business day
950222313Electric10.4 GPM @ 1300 PSIGearYes42.0" x 18.5" x 18.5" $2,319.04 / EACH
Ships next business day
