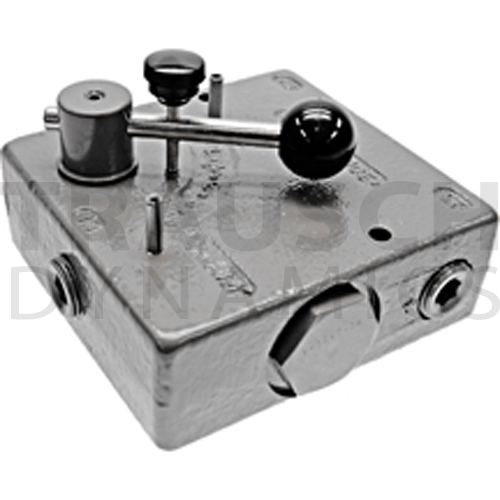

RD-1950-8 PRINCE. HYDRAULIC VALVE, PRESSURE COMPENSATED FLOW CONTROL, CONTROLLED FLOW IS SET BY ROTATING THE HANDLE TO DESIRED POSITION. CONTROLLED FLOW IS FROM PORT "CF". BYPASS FLOW IS FROM PORT "EF". "EF" PORT MAY ALSO BE PLUGGED AND VALVE CAN BE USED AS AN INLINE FLOW CONTROL. FLOW REMAINS NEARLY CONSTANT OUT OF "CF" REGARDLESS OF PRESSURE VARIATIONS IN "CF" OR "EF" LEGS OF THE CIRCUIT. PRINCE #RD-1950-8.
| Mfr. Number | Ports | CF & "EF" Ports Location | With Relief | Max. "CF" GPM | Max. Input GPM | Max. PSI |
|---|---|---|---|---|---|---|
| RD-1950-8 | 1/2" NPTF | Side | No | 8 | 30 | 3000 |
