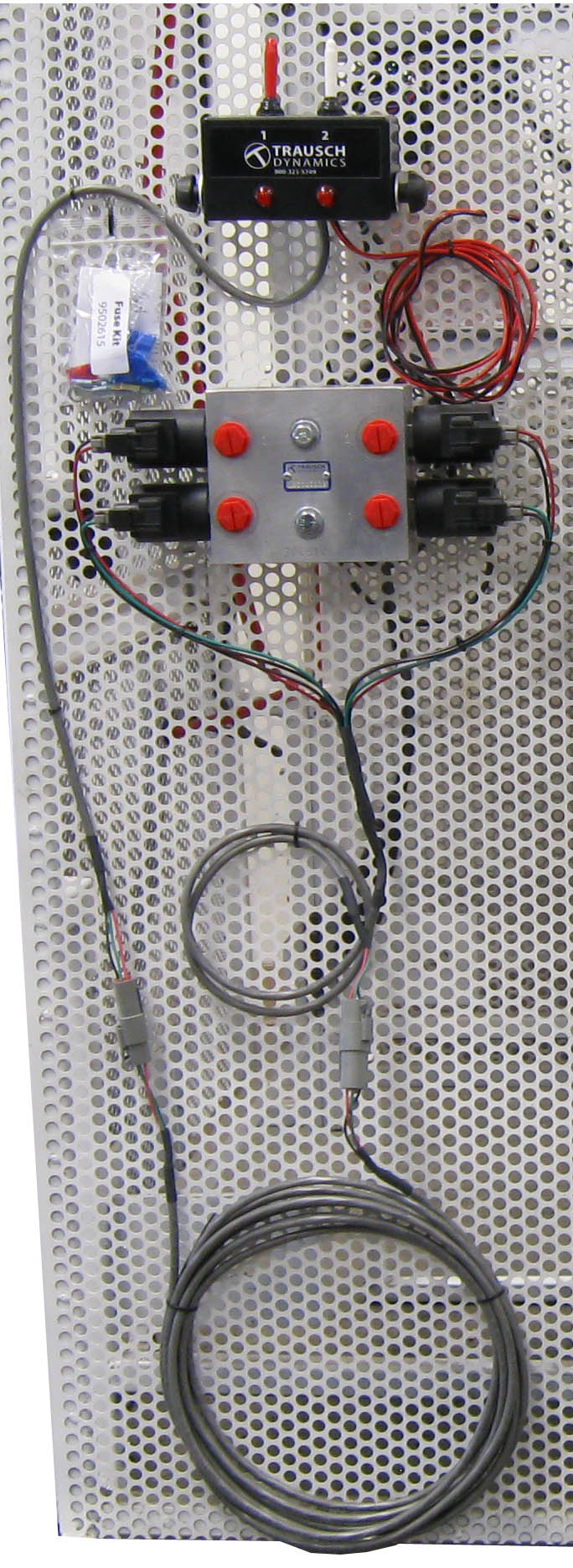

POPPETPLUS 2-STATION SELECTOR VALVE ASSEMBLY
Stations | Ports | Operating Pressure | Flow |
---|---|---|---|
2 | #8 SAE O-Ring | 3500 PSI | 15 GPM |

Here is the answer to add 2 sets of leak-proof cylinder controls! Simply plumb this valve into one of your existing remote A & B lines. At the flip of a switch, you can now run the extra functions. This valve is commonly used on sprayers and alike equipment that requires the use of poppet valves. Poppet valves are typically used on cylinders to prevent creep or settling. Your application may vary. Please speak to a customer service representative for applications assistance if required. |
Instructions: Includes Installation and Operating Guide |
Mfr. No.: PoppetPLUS 2 |
Flow: 0-15 GPM |
Operating Pressure: 3500 PSI |
Duty Cycle: Continuous |
Current: 4 Amps @ 12 VDC (Per Station) |
Installation: Unrestricted |
Temperature: -40°F to +250°F |
Hydraulic System: All - Open, Closed & PFC |
Ports: #8 SAE O-Ring Boss |
Recommended Filtration: 10 Micron Nominal |
Electrical Protection Class: IP69 |
Toggle Switch: Heavy-Duty Detended SPST Switch |
Wire Harness Length: 22 Feet |
Wire Connections: Deutsch |
Typical Leakage: Negligible, No Cylinder Creep |
Valve Dimensions: 4.38" Long, 10" Wide, 2.5" Tall |
Valve Mounting Holes: 2.25" Center-To-Center, For 3/8" Bolts |
Switch Box Dimensions: 1.5" Long, 6" Wide, 5" Tall |
