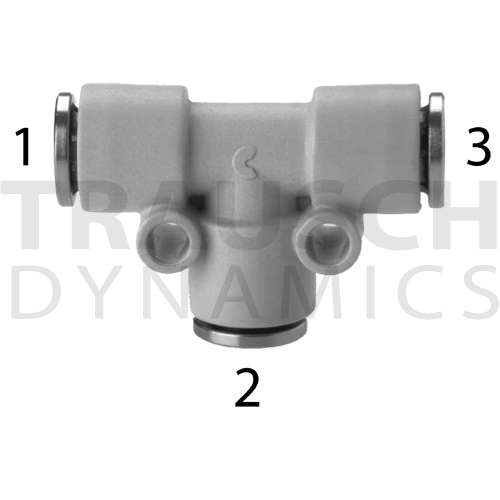

UNION TEE METRIC TUBE
- Fitting Model 7540 Union Tee
- Use on compressed air
- Operating pressure up to 250 PSI
- -4° to +140°F temperature range
- Body: Technopolymer (glass-reinforced Nylon 66 Resin); Insert: brass; collet: nickel-plated brass; seals: NBR
- Use with Nylon 6, 11, or 12, polyethylene, PU (polyurethane recommended 90A durometer and above) Hytrel Polyester.
- Tube Diameter OD: 4, 6, 8, 10, 12, 16mm
| Image | Item # | Fitting # | 1 Tube OD | 2 Tube OD | 3 Tube OD | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1033170 | 7540 4 | 4 mm | 4 mm | 4 mm | $4.03 / EACH Usually ships in 5 day(s) |
| ||||
| 1033171 | 7540 6 | 6 mm | 6 mm | 6 mm | $4.03 / EACH Usually ships in 5 day(s) |
| ||||
| 1033172 | 7540 8 | 8 mm | 8 mm | 8 mm | $4.78 / EACH Usually ships in 5 day(s) |
| ||||
| 1033173 | 7540 10 | 10 mm | 10 mm | 10 mm | $6.44 / EACH Usually ships in 5 day(s) |
| ||||
| 1033174 | 7540 12 | 12 mm | 12 mm | 12 mm | $10.42 / EACH Usually ships in 5 day(s) |
| ||||
| 1033175 | 7540 16 | 16 mm | 16 mm | 16 mm | $22.40 / EACH Usually ships in 5 day(s) |
| ||||
