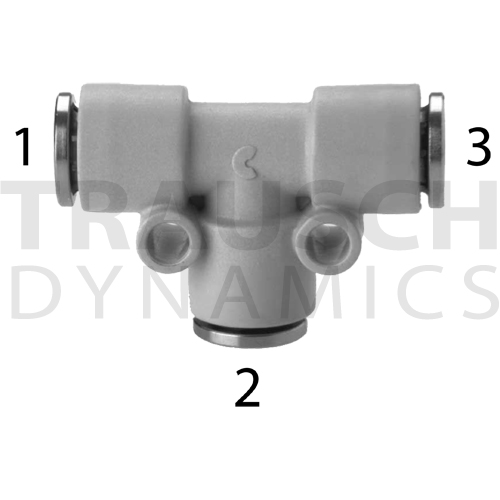

UNION TEE INCH TUBE
- Fittings Model 7540 Union Tee
- Use on compressed air
- Operating pressure up to 250 PSI
- -4° to +140°F temperature range
- Body: Technopolymer (glass-reinforced Nylon 66 Resin); Insert: brass; collet: nickel-plated brass; seals: NBR
- Use with Nylon 6, 11, or 12, polyethylene, PU (polyurethane recommended 90A durometer and above) Hytrel Polyester.
- Tube Diameter OD: 5/32", 1/4", 5/16", 3/8", 1/2"
| Image | Item # | Fitting # | 1 Tube OD | 2 Tube OD | 3 Tube OD | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1033055 | 7540 53-00 | 5/32" | 5/32" | 5/32" | $4.15 / EACH Usually ships in 5 day(s) |
| ||||
| 1033056 | 7540 04-00 | 1/4" | 1/4" | 1/4" | $4.58 / EACH Usually ships in 5 day(s) |
| ||||
| 1033057 | 7540 05-00 | 5/16" | 5/16" | 5/16" | $5.10 / EACH Usually ships in 5 day(s) |
| ||||
| 1033058 | 7540 06-00 | 3/8" | 3/8" | 3/8" | $6.68 / EACH Usually ships in 5 day(s) |
| ||||
| 1033059 | 7540 08-00 | 1/2" | 1/2" | 1/2" | $9.22 / EACH Usually ships in 5 day(s) |
| ||||
