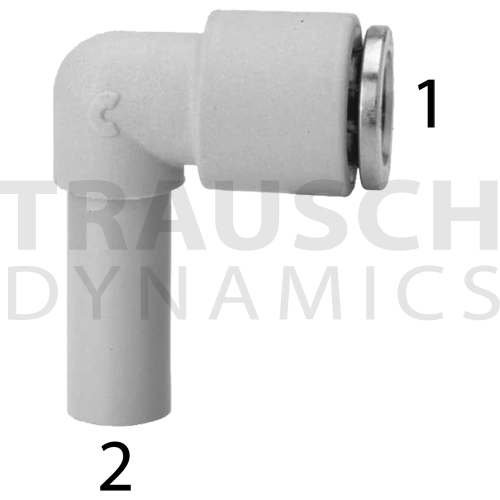

PLUG-IN ELBOW INCH TUBE
- Fittings Model 7555 Plug-In Elbow
- Use on compressed air
- Operating pressure up to 250 PSI
- -4° to +140°F temperature range
- Body: Technopolymer (glass-reinforced Nylon 66 Resin); Insert: brass; collet: nickel-plated brass; seals: NBR
- Use with Nylon 6, 11, or 12, polyethylene, PU (polyurethane recommended 90A durometer and above) Hytrel Polyester.
- Tube Diameter OD: 5/32", 1/4", 5/16", 3/8", 1/2"
| Image | Item # | Fitting # | 1 Tube OD | 2 OD | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1033064 | 7555 53-53 | 5/32" | 5/32" | $4.09 / EACH Usually ships in 5 day(s) |
| ||||
| 1033065 | 7555 04-04 | 1/4" | 1/4" | $4.09 / EACH Usually ships in 5 day(s) |
| ||||
| 1033066 | 7555 05-05 | 5/16" | 5/16" | $4.44 / EACH Usually ships in 5 day(s) |
| ||||
| 1033067 | 7555 06-06 | 3/8" | 3/8" | $7.18 / EACH Usually ships in 5 day(s) |
| ||||
| 1033068 | 7555 08-08 | 1/2" | 1/2" | $8.91 / EACH Usually ships in 5 day(s) |
| ||||
