StationsPortsOperating PressureFlow
3#8 SAE O-Ring3500 PSI15 GPM
Order Quantity:


15 lbs. | EACH


Here is the answer to add 3 sets of leak-proof cylinder controls! Simply plumb this valve into one of your existing remote A & B lines. At the flip of a switch, you can now run the extra functions. This valve is commonly used on sprayers and alike equipment that requires the use of poppet valves. Poppet valves are typically used on cylinders to prevent creep or settling. Your application may vary. Please speak to a customer service representative for applications assistance if required.

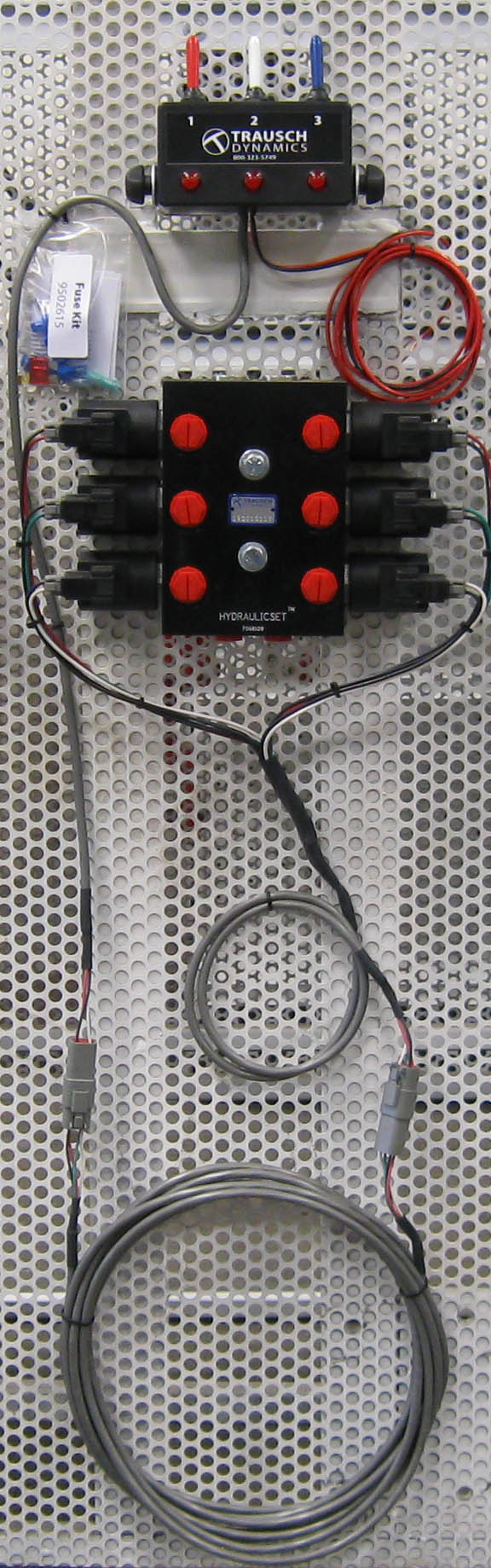

Package Includes: Valve Assembly, Switch Box With Adjustable Mounting Bracket, Color-Coded Toggle Switches, Indicator Lights For Each Switch, Wiring Harnesses, Fuse Kit

Instructions: Includes Installation and Operating Guide

Mfr. No.: PoppetPLUS 3

Flow: 0-15 GPM
Operating Pressure: 3500 PSI
Duty Cycle: Continuous
Current: 4 Amps @ 12 VDC (Per Station)
Installation: Unrestricted
Temperature: -40°F to +250°F
Hydraulic System: All - Open, Closed & PFC
Ports: #8 SAE O-Ring Boss
Recommended Filtration: 10 Micron Nominal
Electrical Protection Class: IP69
Toggle Switch: Heavy-Duty Detended SPST Switch
Wire Harness Length: 22 Feet
Wire Connections: Deutsch
Typical Leakage: Negligible, No Cylinder Creep
Valve Dimensions: 6.25" Long, 10" Wide, 2.5" Tall
Valve Mounting Holes: 2.25" Center-To-Center, For 3/8" Bolts
Switch Box Dimensions: 1.5" Long, 6" Wide, 5" Tall
