D03 12 GPM 12 VDC Electric Directional Valve w/ Control Kits

D03 12 GPM 12 VDC Electric Directional Valve w/ Control Kits

  • Used to control direction of cylinders or motors, depending on application
  • Can be used on most mobile equipment, including ag equipment, tow trucks, tractors, and bale beds.
  • 12 GPM Nominal Flow
  • 21 GPM Intermittent
  • 5080 PSI Max at "P", "A", & "B" Ports
  • 3050 PSI Max at "T" Port
  • Adjustable Relief Valve 100-4000 PSI
  • DIN 12 VDC Coils, 33 Watts, 2.72 Amps
  • Switch box features easily adjustable bail mount
  • Heavy duty long bat handle momentary switches
  • Switches are color coded
  • Switch box has 3' wiring harness and 6' power cable
  • 18 gauge shielded wire
  • IP69 Deutsch Connectors
  • IP65 Coil Connectors
  • IP65 DIN Connectors
  • 10 Amp fuse kit
  • 20' wiring harness
  • 3' Valve harness

*** Slide table left/right to view more ***

Item Order Qty. Sections # of Switches Circuit Tank & Pressure Ports Work Ports Relief Valve Switch Colors
Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 1-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504508

Used to control direction of cylinders or mo...

$479.77/each

Usually ships in 1 day

Double Acting Cylinder 1 Parallel/Closed Center #10 SAE #8 SAE No Red

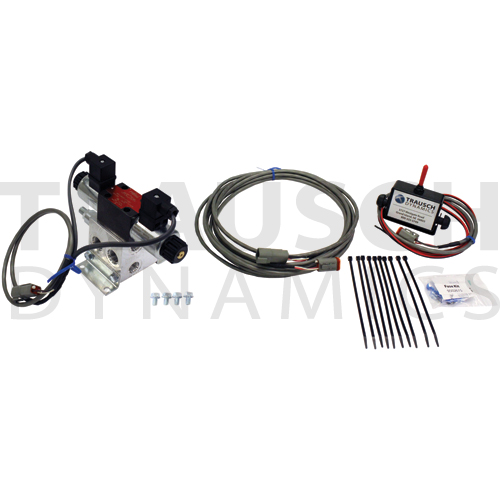

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 1-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve with Relief Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, adjustable relief valve 100-4000 PSI, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504509

Used to control direction of cylinders or mo...

$550.80/each

Usually ships in 1 day

Double Acting Cylinder 1 Parallel/Closed Center #10 SAE #8 SAE Yes Red

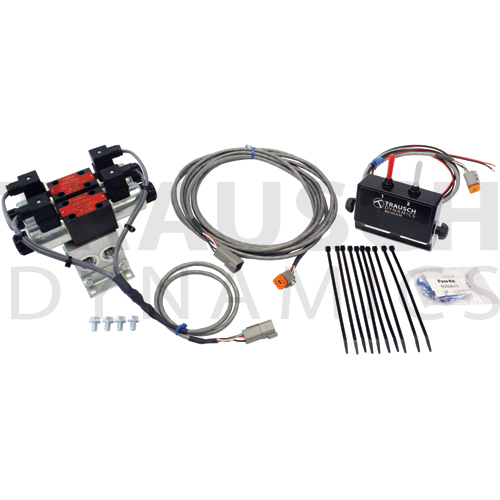

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 2-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504444

Used to control direction of cylinders or mo...

$692.75/each

Usually ships in 1 day

Double Acting Cylinder 2 Parallel/Closed Center #10 SAE #8 SAE No Red / White

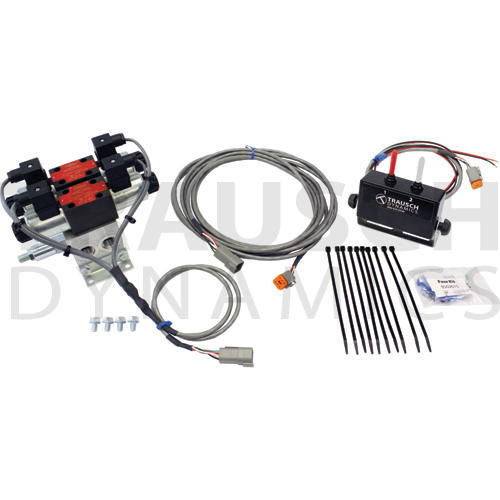

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 2-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve with Relief Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, adjustable relief valve 100-4000 PSI, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504445

Used to control direction of cylinders or mo...

$695.57/each

Usually ships in 1 day

Double Acting Cylinder 2 Parallel/Closed Center #10 SAE #8 SAE Yes Red / White

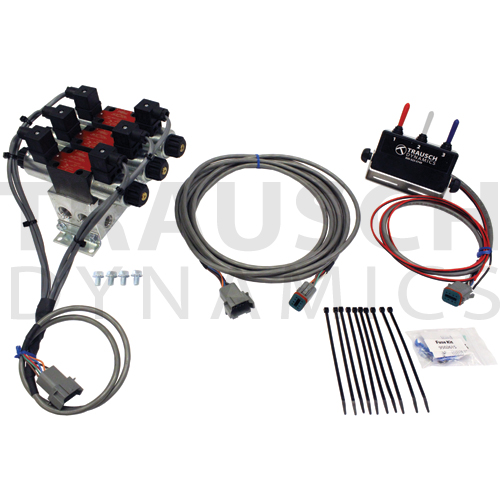

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 3-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504468

Used to control direction of cylinders or mo...

$912.28/each

Usually ships in 1 day

Double Acting Cylinder 3 Parallel/Closed Center #10 SAE #8 SAE No Red / White / Blue

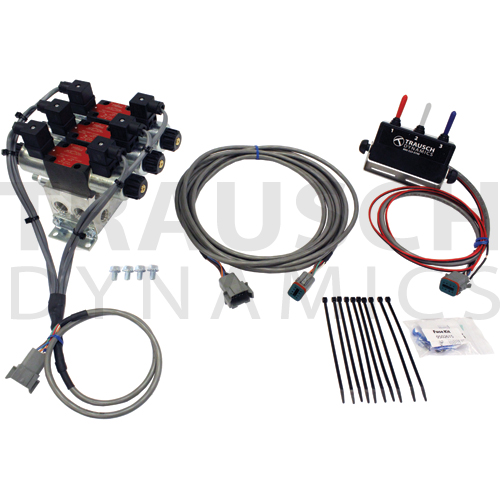

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 3-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve with Relief Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, adjustable relief valve 100-4000 PSI, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504469

Used to control direction of cylinders or mo...

$985.90/each

Usually ships in 1 day

Double Acting Cylinder 3 Parallel/Closed Center #10 SAE #8 SAE Yes Red / White / Blue

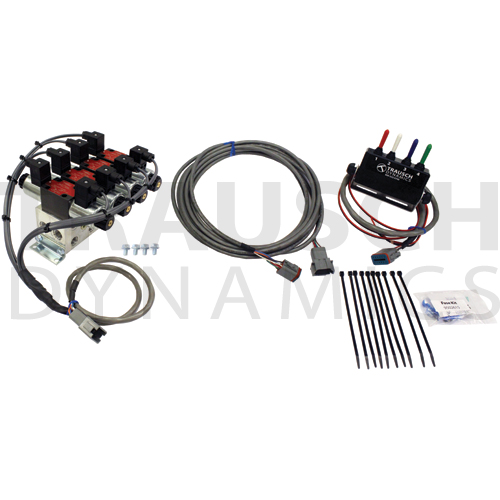

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 4-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504484

Used to control direction of cylinders or mo...

$1,292.88/each

Usually ships in 1 day

Double Acting Cylinder 4 Parallel/Closed Center #10 SAE #8 SAE No Red / White / Blue / Green

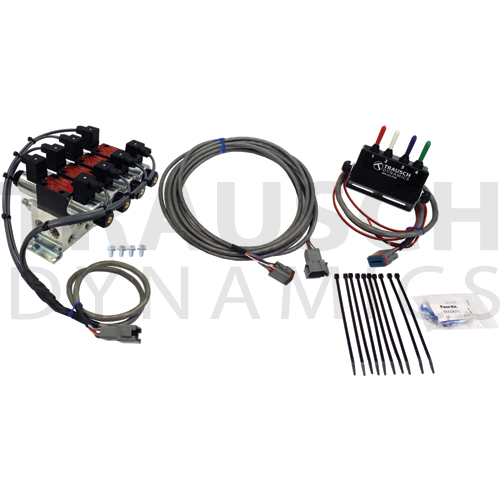

Used to control direction of cylinders or motors depending on application. Can be used on mobile equipment including ag equipment, tow trucks, tractors and Bale Beds. All Kits Include: (1) 4-switch box with wiring harness, (10) 7.5" cable ties, (1) 10 Amp fuse kit, (1) 20' wiring harness, (1) DIN valve wiring harness, & (1) D03 12 GPM Valve with Relief Valve. Electrical Specifications: 4.76"x2.60"x1.40" black switch box, easily adjustable bail mount, heavy duty 10 Amp switch, momentary switches (on)-off-(on), long bat handle switch for easy actuation, switches are color coded, switch box has 3' wiring harness, switch box has 6' power cable, shielded wire, 18 gauge wires, IP69 Deutsch Connectors, IP65 Coil Connections, IP65 DIN Connectors, 10 Amp fuse kit with instructions, 20' wiring harness, 3' valve harness. Valve Specifications: 12 GPM nominal flow rate, 21 GPM intermittent use, 5080 PSI max at "P" Port, 5080 PSI max at "A" or "B" ports, 3050 PSI max at "T" port, adjustable relief valve 100-4000 PSI, DIN 12 VDC Coils, 33 Watts, 2.72 Amps.

9504485

Used to control direction of cylinders or mo...

$1,377.78/each

Usually ships in 1 day

Double Acting Cylinder 4 Parallel/Closed Center #10 SAE #8 SAE Yes Red / White / Blue / Green
