3W2P SELECTOR FLOW 2>1 - 2>3
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 3 Way 2 Position
- Direct Acting Spool
- When de-energized, the valve allows flow from (2) to (1) and blocks flow at port (3).
- When Energized, the valve allows flow from (2) to (3) and blocks flow at port (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.

Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 7010248 | PP-S3D-00 | 3 | 3000 | 3/4-16 | Buna | - | $39.25 / EACH In stock - Ships same day | |||
![]() | 7010249 | PP-S3D-0M | 3 | 3000 | 3/4-16 | Buna | Override & Detent | $66.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

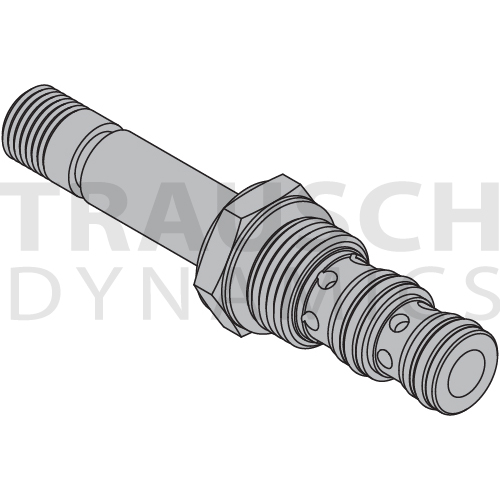

![]() | 7010487 | PP-S3D-A0 | 3 | 3000 | 3/4-16 | Buna | Screen | $41.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010488 | PP-S3D-B1 | 3 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $66.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010489 | PP-S3D-B3 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Non-Detent | $68.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010490 | PP-S3D-B4 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Detent | $68.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010491 | PP-S3D-V0 | 3 | 3000 | 3/4-16 | Viton | - | $43.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010492 | PP-S3D-V1 | 3 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $70.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010493 | PP-S3D-V3 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Non-Detent | $72.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010494 | PP-S3D-V4 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Detent | $72.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

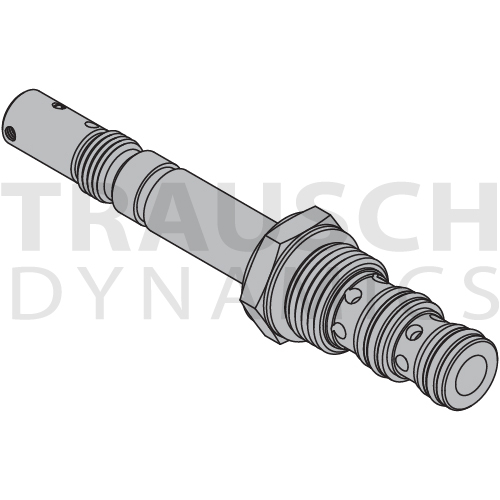

![]() | 7010495 | PP-S3D-VM | 3 | 3000 | 3/4-16 | Viton | Override & Detent | $70.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010496 | PP-S3D-W0 | 3 | 3000 | 3/4-16 | Viton | Screen | $45.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7010280 | HU-S3F-00 | 15 | 5000 | 1 1/16-12 | Buna | - | $99.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

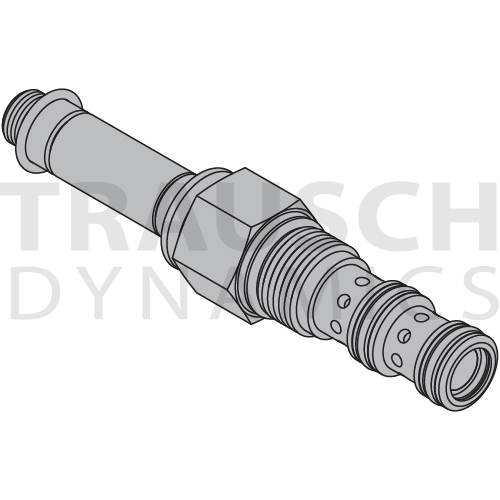

![]() | 7010574 | HU-S3F-V0 | 15 | 5000 | 1 1/16-12 | Viton | - | $107.00 / EACH Usually ships in 5 week(s). Expedite available. |
