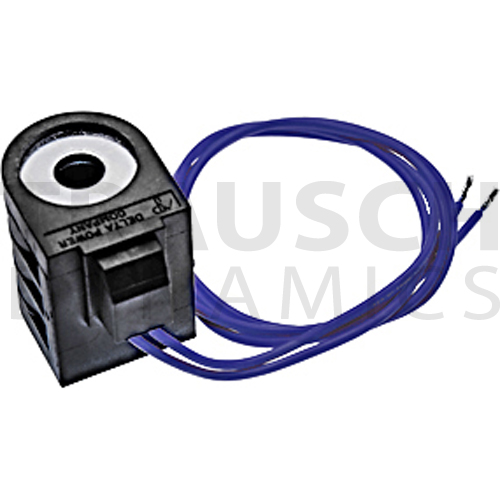

P Type Coils

Name: Trausch Dynamics
Address: 3727 Westgate Road, Grand Island, NE, 68803
Telephone: 800-323-5749

1/2" I.D.
1.78" Tall
Fits PB, PP, & PQ 2-Position 'Power' Series Solenoid Valves
19 Watts Nominal
Continous Duty ±10% Rated Voltage @ 120°F
Temp Range -40°F to +392°F
AC Coils are 50/60 HZ
Wires are 18 Gauge, 22"-24" Long, 600 Volt Rating & Strain Relief
Torque Coil Nuts to 5 ft. lbs. (60" in. lbs.)

*** Slide table left/right to view more ***

Item	Order Qty.	Mfr. Number	Description	Voltage	Amps
7013598 PDL06 Delta Power Coil, 6 VDC, Dual Wire Lea...	$70.01/each In stock - Ships same day	PDL06	Dual Wire Leads	6 VDC	3.5
7013600 PDL10 Delta Power Coil, 10 VDC, Dual Wire Le...	$70.01/each In stock - Ships same day	PDL10	Dual Wire Leads	10 VDC	2.2
7013601 PDL12 Delta Power Coil, 12 VDC, Dual Wire Le...	$15.50/each In stock - Ships same day	PDL12	Dual Wire Leads	12 VDC	1.6
7013607 PDL24 Delta Power Coil, 24 VDC, Dual Wire Le...	$16.00/each In stock - Ships same day	PDL24	Dual Wire Leads	24 VDC	0.78
7013626 PDS10 Delta Power Coil, 10 VDC, Dual 1/4" Sp...	$70.01/each Usually ships in 11 weeks	PDS10	Dual 1/4" Spades	10 VDC	2.2
7013627 PDS12 Delta Power Coil, 12 VDC, Dual 1/4" Sp...	$15.75/each In stock - Ships same day	PDS12	Dual 1/4" Spades	12 VDC	1.6
7013635 PDS24 Delta Power Coil, 24 VDC, Dual 1/4" Sp...	$16.00/each In stock - Ships same day	PDS24	Dual 1/4" Spades	24 VDC	0.78
7013625 PSL12 Delta Power Coil, 12 VDC, Single Wire...	$70.01/each In stock - Ships same day	PSL12	Single Wire Lead	12 VDC	1.6
7013624 PSP12 Delta Power Coil, 12 VDC, Single #8 St...	$70.01/each In stock - Ships same day	PSP12	Single #8 Post	12 VDC	1.6
7013620 PWL12 DELTA POWER COIL, 12 VDC, WEATHER-PACK...	$70.01/each In stock - Ships same day	PWL12	Weather-Pack Leads	12 VDC	1.6
7013636 PSS10 Delta Power Coil, 10 VDC, Single 1/4"...	$70.01/each In stock - Ships same day	PSS10	Single 1/4" Spade	10 VDC	2.2
7013637 PSS12 Delta Power Coil, 12 VDC, Single 1/4"...	$70.01/each In stock - Ships same day	PSS12	Single 1/4" Spade	12 VDC	1.6
7013655 PHC11 Delta Power Coil, 110 VAC, DIN43650 Co...	$34.25/each In stock - Ships same day	PHC11	DIN 43650 (Hirschmann)	110 VAC	0.19
7013641 PHC12 Delta Power Coil, 12 VDC, DIN 43650 Co...	$19.75/each In stock - Ships same day	PHC12	DIN 43650 (Hirschmann)	12 VDC	1.6
7013656 PHC13 Delta Power Coil, 125 VAC, DIN43650 Co...	$54.45/each In stock - Ships same day	PHC13	DIN 43650 (Hirschmann)	125 VAC	0.17

*** Slide table left/right to view more ***
