LSP1301 Series

LSP1301 Series

  • The LSP1301 Series low pressure steel sight plug has a clear glass sight and male SAE straight thread connection
  • Designed to be an economical alternative to high performance fused sight plugs, the LSP1301 Series sight plug features a tamper resistant construction with the reliability of an o-ring seal
  • The sight plug can be accessorized with reflector, float ball and choice of tank seal material
  • Box quantities may apply
  • Stud end sizes from dash 08 (3/4-16UNF) to dash 28 (2¼-12UN) per SAE J1926/3
  • Clear glass sight
  • Zinc clear finish

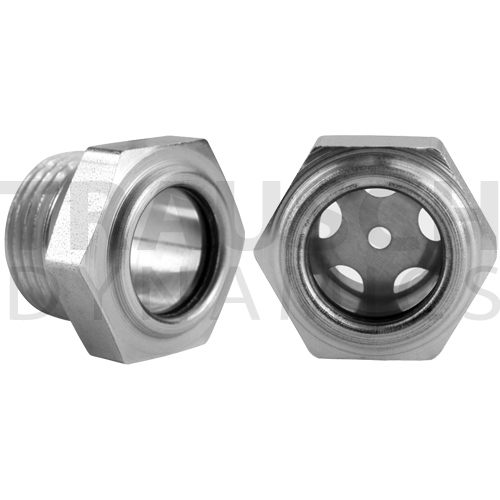

  • Available open view, with reflector or with reflector and float ball
  • Carbon steel construction
  • Stainless Steel reflector (when applicable)
  • Cork float ball (when applicable)
  • Maximum operating temperature up to 180°F
  • CAUTION:
  • Do not use an impact wrench to install a sight plug
  • Not recommended for steam applications
  • Scratched glass significantly reduces the pressure rating of the sight plug

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number View NPT Threads Max PSI @ 69F Hex
LSP1301-08 LDI (Vescor) | Sight Plug - Open View | 3/4-16 UNF Threads | 0.56" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-08

1232721

LSP1301-08 LDI (Vescor) | Sight Plug - Open...

$6.89/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-08 Open 3/4"-16 75 0.88"
LSP1301-08-01 LDI (Vescor) | Sight Plug - Reflector | 3/4-16 UNF Threads | 0.56" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-08-01

1232722

LSP1301-08-01 LDI (Vescor) | Sight Plug - Re...

$8.70/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-08-01 Reflector 3/4"-16 75 0.88"
LSP1301-12 LDI (Vescor) | Sight Plug - Open View | 1-1/16-12 UNF Threads | 0.77" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-12

1232724

LSP1301-12 LDI (Vescor) | Sight Plug - Open...

$12.80/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-12 Open 1 1/16"-12 75 1.25"
LSP1301-12-01 LDI (Vescor) | Sight Plug - Reflector | 1-1/16-12 UNF Threads | 0.77" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-12-01

1232725

LSP1301-12-01 LDI (Vescor) | Sight Plug - Re...

$15.27/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-12-01 Reflector 1 1/16"-12 75 1.25"

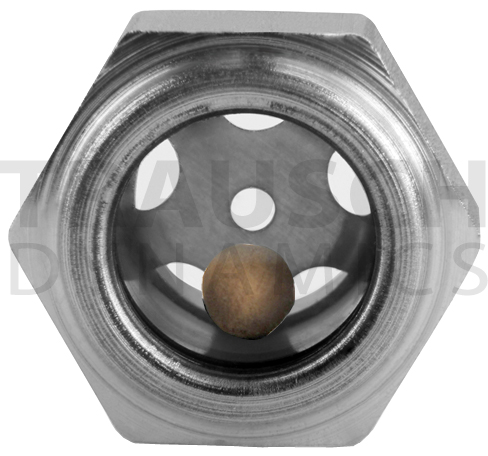

LSP1301-12-02 LDI (Vescor) | Sight Plug - Reflector and Ball | 1-1/16-12 UNF Threads | 0.77" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-12-02

1232726

LSP1301-12-02 LDI (Vescor) | Sight Plug - Re...

$17.92/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-12-02 Reflector w/ ball 1 1/16"-12 75 1.25"

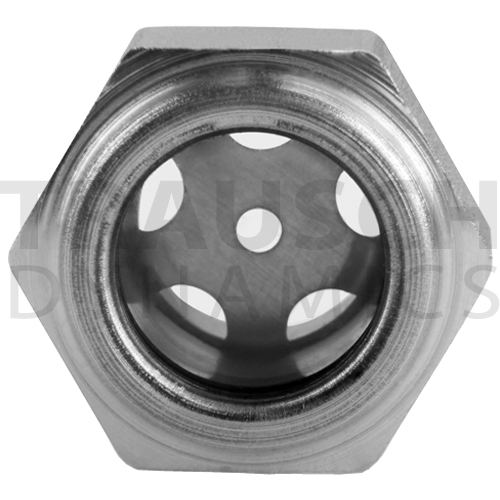

LSP1301-12TB-01 LDI (Vescor) | Sight Plug - Reflector | 1-1/16-12 UNF Threads | 0.77" Hole DIA | 75 PSI @ 69?F Max Working Pressure | Buna Tank O-Ring Seal | LDI (Vescor) LSP1301-12TB-01

1232727

LSP1301-12TB-01 LDI (Vescor) | Sight Plug -...

$16.40/each

In stock - Ships same day

Min Order Qty: 25
LSP1301-12TB-01 Reflector 1 1/16"-12 75 1.25"
LSP1301-12TB-02 LDI (Vescor) | Sight Plug - Reflector and Ball | 1-1/16-12 UNF Threads | 0.77" Hole DIA | 75 PSI @ 69?F Max Working Pressure | Buna Tank O-Ring Seal | LDI (Vescor) LSP1301-12TB-02

1232728

LSP1301-12TB-02 LDI (Vescor) | Sight Plug -...

$18.68/each

Usually ships in 4 weeks

Min Order Qty: 25
LSP1301-12TB-02 Reflector w/ ball 1 1/16"-12 75 1.25"

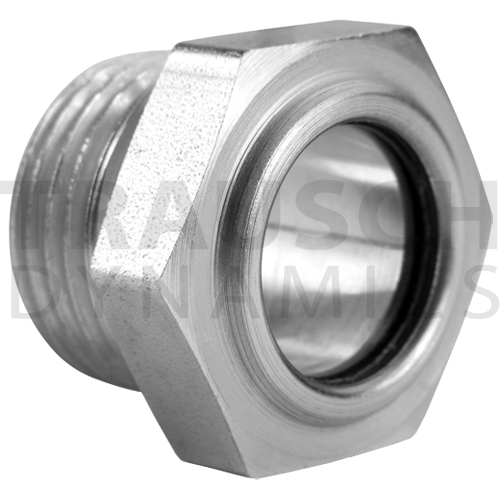

LSP1301-16 LDI (Vescor) | Sight Plug - Reflector | 1-5/16-12 UNF Threads | 0.96" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-16

1232729

LSP1301-16 LDI (Vescor) | Sight Plug - Refle...

$19.46/each

Usually ships in 4 weeks

Min Order Qty: 15
LSP1301-16 Reflector 1 5/16"-12 75 1.5"
LSP1301-16-01 LDI (Vescor) | Sight Plug - Reflector and Ball | 1-5/16-12 UNF Threads | 0.96" Hole DIA | 75 PSI @ 69?F Max Working Pressure | LDI (Vescor) LSP1301-16-01

1232730

LSP1301-16-01 LDI (Vescor) | Sight Plug - Re...

$22.05/each

Usually ships in 4 weeks

Min Order Qty: 15
LSP1301-16-01 Reflector w/ ball 1 5/16"-12 75 1.5"
LSP1301-16TB-01 LDI (Vescor) | Sight Plug - Reflector | 1-5/16-12 UNF Threads | 0.96" Hole DIA | 75 PSI @ 69?F Max Working Pressure | Buna Tank O-Ring Seal | LDI (Vescor) LSP1301-16TB-01

1232731

LSP1301-16TB-01 LDI (Vescor) | Sight Plug -...

$23.52/each

Usually ships in 4 weeks

Min Order Qty: 15
LSP1301-16TB-01 Reflector 1 5/16"-12 75 1.5"
LSP1301-16TB-02 LDI (Vescor) | Sight Plug - Reflector and Ball | 1-5/16-12 UNF Threads | 0.96" Hole DIA | 75 PSI @ 69?F Max Working Pressure | Buna Tank O-Ring Seal | LDI (Vescor) LSP1301-16TB-02

1232732

LSP1301-16TB-02 LDI (Vescor) | Sight Plug -...

$26.70/each

Usually ships in 4 weeks

Min Order Qty: 15
LSP1301-16TB-02 Reflector w/ ball 1 5/16"-12 75 1.5"

*** Slide table left/right to view more ***
