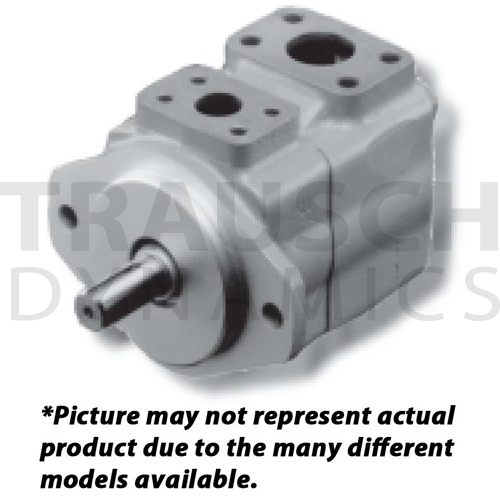

1-1/4" KEYED SHAFT VANE PUMPS 2.88" LONG - SAE C, VICKERS REPLACEMENT PUMPS
- Low Noise Characteristics
- 10 Vane Systems - Low Amplitude Flow Pulsations
- Long Life
- Inlet and outlet ports can be oriented in four different positions relative to each other
| Image | Item # | Mfr. Number | Rotation | In3 Per Rev. | GPM @ RPM 1200 | Max PSI | Max RPM | Inlet | Outlet | Port Orientation | Shaft | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6301177 | 35V25A1A22R | CW | 4.94 | 25 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301178 | 35V30A1A22R | CW | 5.91 | 30 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301179 | 35V35A1A22R | CW | 6.83 | 35 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301180 | 35V38A1A22R | CW | 7.37 | 38 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301181 | 35V25A1A22L | CCW | 4.94 | 25 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301182 | 35V30A1A22L | CCW | 5.91 | 30 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301183 | 35V35A1A22L | CCW | 6.83 | 35 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301184 | 35V38A1A22L | CCW | 7.37 | 38 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet Opposite Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301193 | 35V25A1B22R | CW | 4.94 | 25 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301194 | 35V30A1B22R | CW | 5.91 | 30 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301195 | 35V35A1B22R | CW | 6.83 | 35 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301196 | 35V38A1B22R | CW | 7.37 | 38 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301197 | 35V25A1B22L | CCW | 4.94 | 25 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301198 | 35V30A1B22L | CCW | 5.91 | 30 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day | |||
 | 6301199 | 35V35A1B22L | CCW | 6.83 | 35 | 2500 | 1800 | #32 code 61 | #20 code 61 | Outlet 90 Deg CCW from Inlet | 1-1/4" Dia x 5/16" Key x 2.88" Length Keyed Shaft | $717.36 / EACH Ships next business day |
