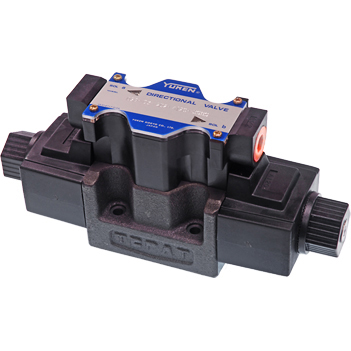

Conduit Box Design

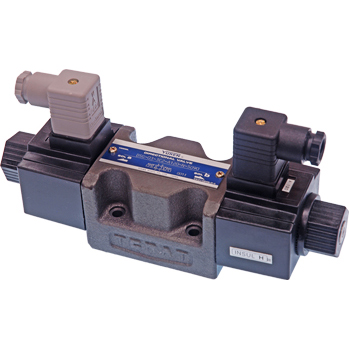

DIN Connector Design

Related Products:

DIN Connector

Closed Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7050227 DSG-03-3C2-D12-5090 12 VDC Conduit Box - 3.16 12 7020024
7050242 DSG-03-3C2-D24-5090 24 VDC Conduit Box - 1.57 12 7020025
7050126 DSG-03-3C2-A120-5090 120 VAC Conduit Box 3.81 0.52 9 7020001
7050137 DSG-03-3C2-D12-N-5090 12 VDC DIN - 3.16 12 7020026
7050138 DSG-03-3C2-D24-N-5090 24 VDC DIN - 1.57 12 7020027
7050125 DSG-03-3C2-A120-N-5090 120 VAC DIN 3.81 0.52 9 7020028

Open Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7050224 DSG-03-3C3-D12-5090 12 VDC Conduit Box - 3.16 12 7020024
7050239 DSG-03-3C3-D24-5090 24 VDC Conduit Box - 1.57 12 7020025
7050124 DSG-03-3C3-A120-5090 120 VAC Conduit Box 3.81 0.52 9 7020001
7050134 DSG-03-3C3-D12-N-5090 12 VDC DIN - 3.16 12 7020026
7050140 DSG-03-3C3-D24-N-5090 24 VDC DIN - 1.57 12 7020027
7050141 DSG-03-3C3-A120-N-5090 120 VAC DIN 3.81 0.52 9 7020028

Tandem Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7050221 DSG-03-3C60-D12-5090 12 VDC Conduit Box - 3.16 12 7020024
7050236 DSG-03-3C60-D24-5090 24 VDC Conduit Box - 1.57 12 7020025
7050121 DSG-03-3C60-A120-5090 120 VAC Conduit Box 3.81 0.52 9 7020001
7050237 DSG-03-3C60-D12-N-5090 12 VDC DIN - 3.16 12 7020026
7050142 DSG-03-3C60-D24-N-5090 24 VDC DIN - 1.57 12 7020027
7050143 DSG-03-3C60-A120-N-5090 120 VAC DIN 3.81 0.52 9 7020028

Motor Spool (A&B to T , P Blocked)

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7050230 DSG-03-3C4-D12-5090 12 VDC Conduit Box - 3.16 12 7020024
7050245 DSG-03-3C4-D24-5090 24 VDC Conduit Box - 1.57 12 7020025
7050129 DSG-03-3C4-A120-5090 120 VAC Conduit Box 3.81 0.52 9 7020001
7050231 DSG-03-3C4-D12-N-5090 12 VDC DIN - 3.16 12 7020026
7050144 DSG-03-3C4-D24-N-5090 24 VDC DIN - 1.57 12 7020027
7050145 DSG-03-3C4-A120-N-5090 120 VAC DIN 3.81 0.52 9 7020028

Criss-Cross (Spring Offset, P to a, b to t)

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7050233 DSG-03-2B2-D12-5090 12 VDC Conduit Box - 3.16 9 7020024
7050248 DSG-03-2B2-D24-5090 24 VDC Conduit Box - 1.57 9 7020025
7050132 DSG-03-2B2-A120-5090 120 VAC Conduit Box 3.81 0.52 9 7020001
7050146 DSG-03-2B2-D12-N-5090 12 VDC DIN - 3.16 9 7020026
7050147 DSG-03-2B2-D24-N-5090 24 VDC DIN - 1.57 9 7020027
7050148 DSG-03-2B2-A120-N-5090 120 VAC DIN 3.81 0.52 9 7020028
