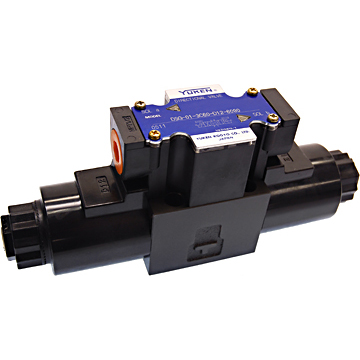

Conduit Box Design

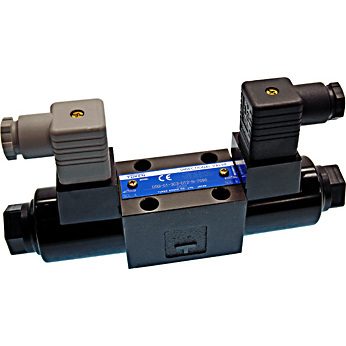

DIN Connector Design

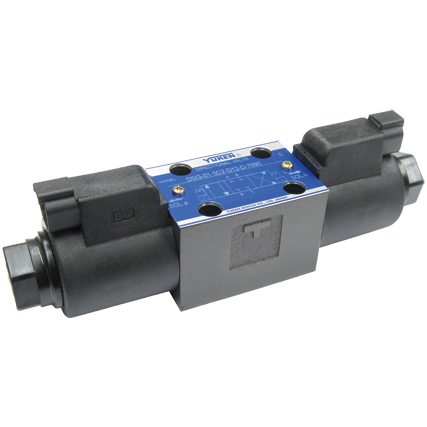

Deutsch Connector Design

Related Products:

DIN Connector

Closed Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7040003 DSG-01-3C2-D12-7090 12 VDC Conduit Box - 2.45 5 7020017
7040009 DSG-01-3C2-D24-7090 24 VDC Conduit Box - 1.23 5 7020008
7040012 DSG-01-3C2-A120-7090 120 VAC Conduit Box 1.78 0.31 5 7020000
7040026 DSG-01-3C2-D12-N-7090 12 VDC DIN - 2.45 5 7020019
7040033 DSG-01-3C2-D24-N-7090 24 VDC DIN - 1.23 5 7020018
7040041 DSG-01-3C2-A120-N-7090 120 VAC DIN 1.78 0.31 5 7020003
7040457 DSG-01-3C2-D12-D-7090 12 VDC Deutsch - 2.45 5 7020022
7040460 DSG-01-3C2-D24-D-7090 24 VDC Deutsch - 1.23 5 7020023

Open Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7040251 DSG-01-3C3-D12-7090 12 VDC Conduit Box - 2.45 5 7020017
7040258 DSG-01-3C3-D24-7090 24 VDC Conduit Box - 1.23 5 7020008
7040265 DSG-01-3C3-A120-7090 120 VAC Conduit Box 1.78 0.31 5 7020000
7040281 DSG-01-3C3-D12-N-7090 12 VDC DIN - 2.45 5 7020019
7040288 DSG-01-3C3-D24-N-7090 24 VDC DIN - 1.23 5 7020018
7040295 DSG-01-3C3-A120-N-7090 120 VAC DIN 1.78 0.31 5 7020003
7040298 DSG-01-3C3-D12-D-7090 12 VDC Deutsch - 2.45 5 7020022
7040301 DSG-01-3C3-D24-D-7090 24 VDC Deutsch - 1.23 5 7020023

Tandem Center

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7040121 DSG-01-3C60-D12-7090 12 VDC Conduit Box - 2.45 5 7020017
7040129 DSG-01-3C60-D24-7090 24 VDC Conduit Box - 1.23 5 7020008
7040137 DSG-01-3C60-A120-7090 120 VAC Conduit Box 1.78 0.31 5 7020000
7040153 DSG-01-3C60-D12-N-7090 12 VDC DIN - 2.45 5 7020019
7040167 DSG-01-3C60-D24-N-7090 24 VDC DIN - 1.23 5 7020018
7040175 DSG-01-3C60-A120-N-7090 120 VAC DIN 1.78 0.31 5 7020003
7040180 DSG-01-3C60-D12-D-7090 12 VDC Deutsch - 2.45 5 7020022
7040183 DSG-01-3C60-D24-D-7090 24 VDC Deutsch - 1.23 5 7020023

Motor Spool (A&B to T , P Blocked)

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7040441 DSG-01-3C4-D12-7090 12 VDC Conduit Box - 2.45 5 7020017
7040448 DSG-01-3C4-D24-7090 24 VDC Conduit Box - 1.23 5 7020008
7040455 DSG-01-3C4-A120-7090 120 VAC Conduit Box 1.78 0.31 5 7020000
7040471 DSG-01-3C4-D12-N-7090 12 VDC DIN - 2.45 5 7020019
7040477 DSG-01-3C4-D24-N-7090 24 VDC DIN - 1.23 5 7020018
7040485 DSG-01-3C4-A120-N-7090 120 VAC DIN 1.78 0.31 5 7020003
7040488 DSG-01-3C4-D12-D-7090 12 VDC Deutsch - 2.45 5 7020022
7040492 DSG-01-3C4-D24-D-7090 24 VDC Deutsch - 1.23 5 7020023

Criss-Cross (Spring Offset, P to a, b to t)

Stock Number

Mfr. Number

Electrical Termination

Inrush Amps

Holding Amps

Ship Wt.

Replacement Coil

Hydraulic Schematic
7040551 DSG-01-2B2-D12-7090 12 VDC Conduit Box - 2.45 4 7020017
7040559 DSG-01-2B2-D24-7090 24 VDC Conduit Box - 1.23 4 7020008
7040565 DSG-01-2B2-A120-7090 120 VAC Conduit Box 1.78 0.31 4 7020000
7040580 DSG-01-2B2-D12-N-7090 12 VDC DIN - 2.45 4 7020019
7040587 DSG-01-2B2-D24-N-7090 24 VDC DIN - 1.23 4 7020018
7040594 DSG-01-2B2-A120-N-7090 120 VAC DIN 1.78 0.31 4 7020003
7040597 DSG-01-2B2-D12-D-7090 12 VDC Deutsch - 2.45 4 7020022
7040600 DSG-01-2B2-D24-D-7090 24 VDC Deutsch - 1.23 4 7020023
