Red Lion AG tie rod 3000 psi Cylinders

Red Lion Agricultural cylinders • 3000 PSI, double acting • Ductile iron pistons • Hard chrome plated rod • Hairpin retainers included on clevises • Rod seal is 90 durometer o ring with anti extrusion backup • Rod wiper is metal encased nitrile • Piston seals are 90 durometer o ring with anti extrusion backups

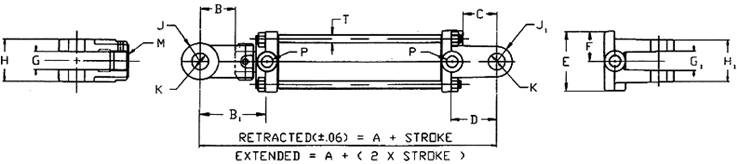

 Dimensional Data in Inches
                                                                                                            Dimensions
Bore A

A
ASAE
-8
A
ASAE
-16
B

B1

B1
ASAE
-8
B1
ASAE
-16
C

D

E

G

G1

H

H1

J

J1

K

K
ASAE
-8
K
ASAE
-16
M

P

T

2    10-1/4 12 1/4 15 1/2 2 1/8 4 3/16 6 3/16 9 7/16 2 1/16 2 7/8 2 3/4 1 1/8 1 1/8 2 1/2 2 3/8 1.0 1.0 1 1/64 1 1/64 1 17/64 1 1/8-12 #8 Oring 3/8
2 1/2 10-1/4 12 1/4 15 1/2 2 1/8 4 3/16 6 3/16 9 7/16 2 1/16 2 7/8 3 1/8 1 1/8 1 1/8 2 1/2 2 1/2 1.0 1.0 1 1/64 1 1/64 1 17/64 1 1/8-12 #8 Oring 3/8
3    10-1/4 12 1/4 15 1/2 2 1/8 3 15/16 5 15/16 9 3/16 2 1/16 2 3/4 3 3/4 1 1/8 1 1/8 2 5/8 2 9/16 1 1/8 1.0 1 1/64 1 1/64 1 17/64 1 1/4-12 #8 Oring 1/2
3 1/2 10-1/4 12 1/4 15 1/2 2 1/8 3 15/16 5 15/16 9 3/16 2 1/16 2 3/4 4 1/2 1 1/8 1 1/8 2 5/8 2 9/16 1 1/8 1 1/8 1 1/64 1 1/64 1 17/64 1 1/4-12 #8 Oring 5/8
4    10-1/4 12 1/4 15 1/2 2 1/8 3 7/8 5 7/8 9 1/8 2 1/16 2 3/4 5 1/8 1 1/8 1 1/8 2 5/8 2 5/8 1 1/8 1 1/8 1 1/64 1 1/64 1 17/64 1 1/4-12 #8 Oring 5/8
Cylinder Column Load- Column strength loading normally affects all types of longer stroke cylinders. Affected cylinders should not be operated beyond these limits as the cylinder rod may buckle or bend causing failure. (Look below for affected cylinders. Stroke limitation applies to compressive loading only.)

2" Bore 3000 PSI
HS
Nbr
Bore Stroke Rod Size Retracted Dimension Extended Dimension Lbs Column Load Port Size Pin Diameter
Click HS Nbr for price
6050553 2" 8" 1 1/8" 18 1/4" 26 1/4" 9425 3/4-16 1"
6050552 2" 8" ASAE 1 1/8" 20 1/4" 28 1/4" 9425 3/4-16 1"
6050556 2" 10" 1 1/8" 20 1/4" 30 1/4" 9425 3/4-16 1"
6050559 2" 12" 1 1/8" 22 1/4" 34 1/4" 9425 3/4-16 1"
6050562 2" 14" 1 1/8" 24 1/4" 38 1/4" 9425 3/4-16 1"
6050565 2" 16" 1 1/8" 26 1/4" 42 1/4" 9425 3/4-16 1"
6050568 2" 18" 1 1/8" 28 1/4" 46 1/4" 9425 3/4-16 1"
6050571 2" 20" 1 1/8" 30 1/4" 50 1/4" 9205 3/4-16 1"
6050574 2" 24" 1 1/8" 34 1/4" 58 1/4" 6850 3/4-16 1"


2 1/2" Bore 3000 PSI
HS
Nbr
Bore Stroke Rod Size Retracted Dimension Extended Dimension Lbs Column Load Port Size Pin Diameter
Click HS Nbr for price
6050577 2 1/2" 8" 1 1/8" 18 1/4" 26 1/4" 14726 3/4-16 1"
6050576 2 1/2" 8" ASAE 1 1/8" 20 1/4" 28 1/4" 14726 3/4-16 1"
6050580 2 1/2" 10" 1 1/8" 20 1/4" 30 1/4" 14726 3/4-16 1"
6050583 2 1/2" 12" 1 1/8" 22 1/4" 34 1/4" 14726 3/4-16 1"
6050586 2 1/2" 14" 1 1/8" 24 1/4" 38 1/4" 14726 3/4-16 1"
6050589 2 1/2" 16" 1 1/4" 26 1/4" 42 1/4" 14726 3/4-16 1"
6050592 2 1/2" 18" 1 1/4" 28 1/4" 46 1/4" 14726 3/4-16 1"
6050595 2 1/2" 20" 1 1/4" 30 1/4" 50 1/4" 14025 3/4-16 1"
6050598 2 1/2" 24" 1 1/4" 34 1/4" 58 1/4" 10435 3/4-16 1"


3" Bore 3000 PSI
HS
Nbr
Bore Stroke Rod Size Retracted Dimension Extended Dimension Lbs Column Load Port Size Pin Diameter
Click HS Nbr for price
6050601 3" 8" 1 1/4" 18 1/4" 26 1/4" 21206 3/4-16 1"
6050600 3" 8" ASAE 1 1/4" 20 1/4" 28 1/4" 21206 3/4-16 1"
6050604 3" 10" 1 1/4" 20 1/4" 30 1/4" 21206 3/4-16 1"
6050607 3" 12" 1 1/4" 22 1/4" 34 1/4" 21206 3/4-16 1"
6050610 3" 14" 1 1/4" 24 1/4" 38 1/4" 21206 3/4-16 1"
6050613 3" 16" 1 1/2" 26 1/4" 42 1/4" 21206 3/4-16 1"
6050612 3" 16" ASAE 1 1/2" 31 1/2" 47 1/2" 21206 3/4-16 1 1/4"
6050616 3" 18" 1 1/2" 28 1/4" 46 1/4" 21206 3/4-16 1"
6050619 3" 20" 1 1/2" 30 1/4" 50 1/4" 21206 3/4-16 1"
6050622 3" 24" 1 1/2" 34 1/4" 58 1/4" 21206 3/4-16 1"


3 1/2" Bore 3000 PSI
HS
Nbr
Bore Stroke Rod Size Retracted Dimension Extended Dimension Lbs Column Load Port Size Pin Diameter
Click HS Nbr for price
6050625 3 1/2" 8" 1 1/4" 18 1/4" 26 1/4" 28863 3/4-16 1"
6050624 3 1/2" 8" ASAE 1 1/4" 20 1/4" 28 1/4" 28863 3/4-16 1"
6050628 3 1/2" 10" 1 1/4" 20 1/4" 30 1/4" 28863 3/4-16 1"
6050631 3 1/2" 12" 1 1/4" 22 1/4' 34 1/4" 28863 3/4-16 1"
6050634 3 1/2" 14" 1 1/4" 24 1/4" 38 1/4" 28863 3/4-16 1"
6050637 3 1/2" 16" 1 1/2" 26 1/4" 42 1/4" 28863 3/4-16 1"
6050260 3 1/2" 16" ASAE 1 1/2" 31 1/2" 47 1/2" 28863 3/4-16 1 1/4"
6050640 3 1/2" 18" 1 1/2" 28 1/4" 46 1/4" 28863 3/4-16 1"
6050643 3 1/2" 20" 1 1/2" 30 1/4" 50 1/4" 28863 3/4-16 1"
6050646 3 1/2" 24" 1 1/2" 34 1/4" 58 1/4" 21645 3/4-16 1"


4" Bore 3000 PSI
HS
Nbr
Bore Stroke Rod Size Retracted Dimension Extended Dimension Lbs Column Load Port Size Pin Diameter
Click HS Nbr for price
6050649 4" 8" 1 1/2" 18 1/4" 26 1/4" 36799 3/4-16 1"
6050648 4" 8" ASAE 1 1/2" 20 1/4" 28 1/4" 37699 3/4-16 1"
6050652 4" 10" 1 1/2" 20 1/4" 30 1/4" 36799 3/4-16 1"
6050655 4" 12" 1 1/2" 22 1/4" 34 1/4" 37699 3/4-16 1"
6050658 4" 14" 1 1/2" 24 1/4" 38 1/4" 36799 3/4-16 1"
6050661 4" 16" 1 3/4" 26 1/4" 42 1/4" 37699 3/4-16 1"
6050660 4" 16" ASAE 1 3/4" 31 1/2" 47 1/2" 36799 3/4-16 1 1/4"
6050664 4" 18" 1 3/4" 28 1/4" 46 1/4" 37699 3/4-16 1"
6050667 4" 20" 1 3/4" 30 1/4" 50 1/4" 36799 3/4-16 1"
6050670 4" 24" 1 3/4" 34 1/4" 58 1/4" 37699 3/4-16 1"
