  • Accessories
  • Check Valves
  • Double Pilot Operated Check Valves
  • Typical application for this valve is load holding when pump is off
  • The valve allows flow to pass form (V1) to (C1) and (V2) to (C2)
  • The valve blocks flow form (C1) to (V1) and from (C2) to (V2)
  • Blocked flow is released when pilot pressure is applied to port opposite valve (V1) and/or port (V2) accordingly
  • The valve has a 6.7:1 pilot ratio, so at least 0.141 of the load pressure at port (C1) or (C2) is requited at the pilot lines ports (V2) or (V1) respectively to open the flow passage to allow flow from ports (C1) or (C2) respectively
  • The check is pring-biased at 50 PSI to assure holding in static or no-load conditions
  • Hardened interal parts for long life
  • Anodized aluminum body for corrosion protection
*** Slide left / right to view more ***
ImageItem #Mfr. NumberSeriesSealThread SizePort SizePriceOrder Qty.
7014200MD-POC-B-NMiniBuna5/8-181/4 NPTF $68.00 / EACH
In Stock - Ships same day

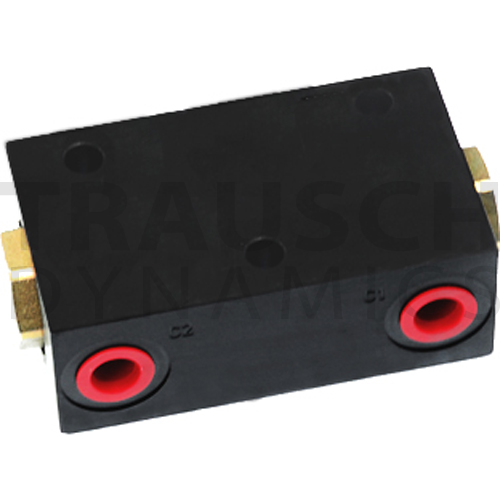

7014201MD-POC-B-SMiniBuna5/8-18#4 SAE $65.57 / EACH
In Stock - Ships same day

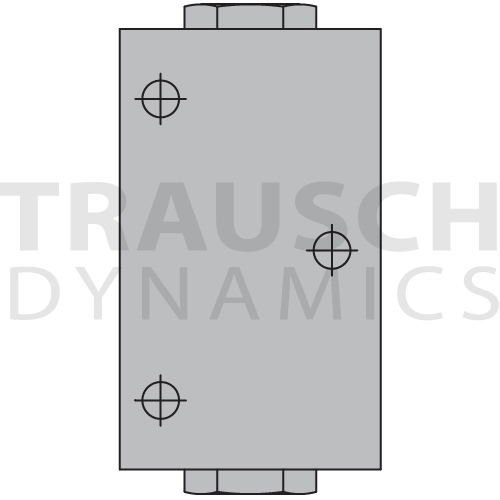

7014203MD-POC-V-NMiniViton5/8-181/4 NPTF $72.00 / EACH
Usually ships in 4 week(s).
Expedite available.

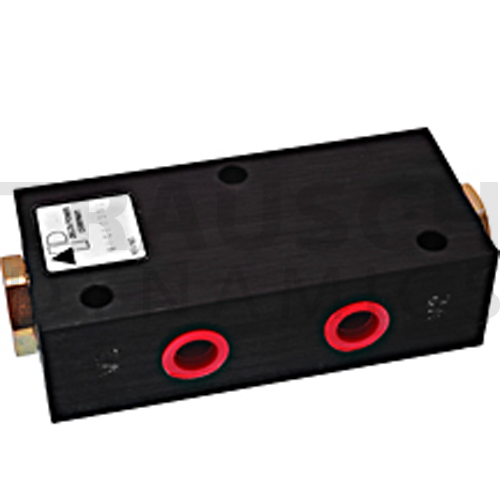

7013001PD-POC-B-NPowerBuna3/4-161/4 NPTF $69.50 / EACH
In Stock - Ships same day
7013027PD-POC-B-SPowerBuna3/4-16#6 SAE $68.00 / EACH
In Stock - Ships same day
7013033PD-POC-V-NPowerViton3/4-161/4 NPTF $74.00 / EACH
Usually ships in 4 week(s).
Expedite available.

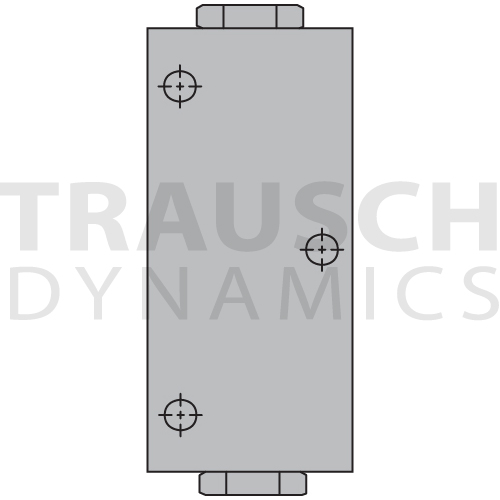

7013034PD-POC-V-SPowerViton3/4-16#6 SAE $72.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7013002DD-POC-B-NDeltaBuna7/8-143/8 NPTF $71.50 / EACH
In Stock - Ships same day
7013029DD-POC-B-SDeltaBuna7/8-14#8 SAE $70.00 / EACH
In Stock - Ships same day
7013018DD-POC-V-NDeltaViton7/8-143/8 NPTF $76.00 / EACH
Usually ships in 4 week(s).
Expedite available.

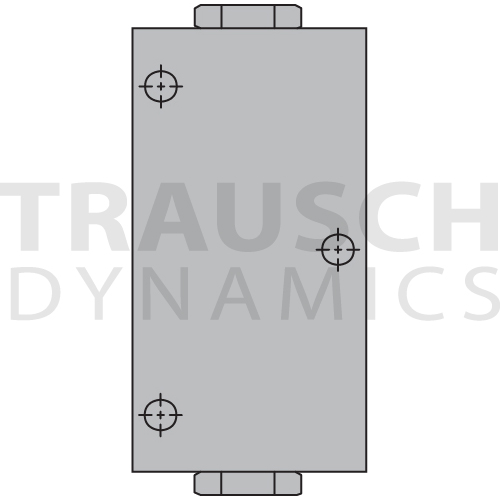

7013019DD-POC-V-SDeltaViton7/8-14#8 SAE $74.50 / EACH
Usually ships in 4 week(s).
Expedite available.

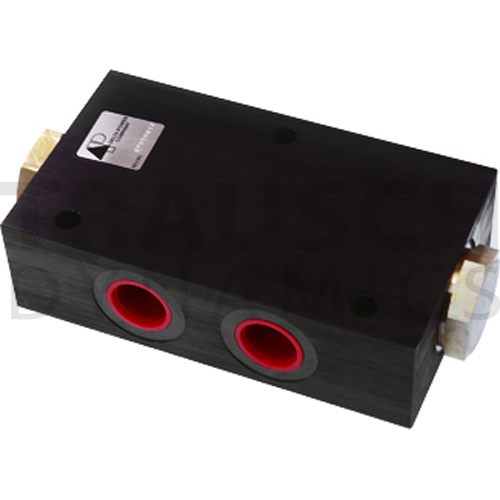

7013007SD-POC-B-SSuperBuna1 5/16-12#12 SAE $162.50 / EACH
In Stock - Ships same day

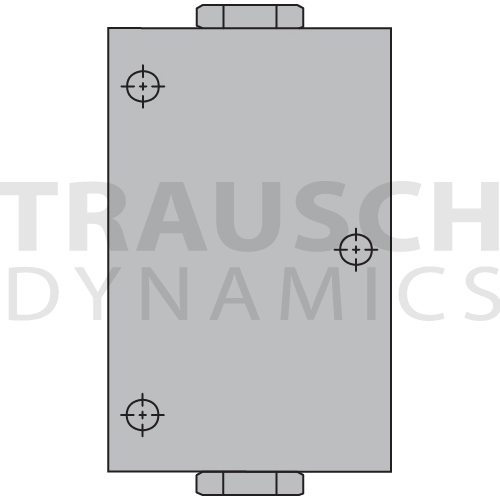

7013015SD-POC-V-SSuperViton1 5/16-12#12 SAE $171.50 / EACH
Usually ships in 4 week(s).
Expedite available.

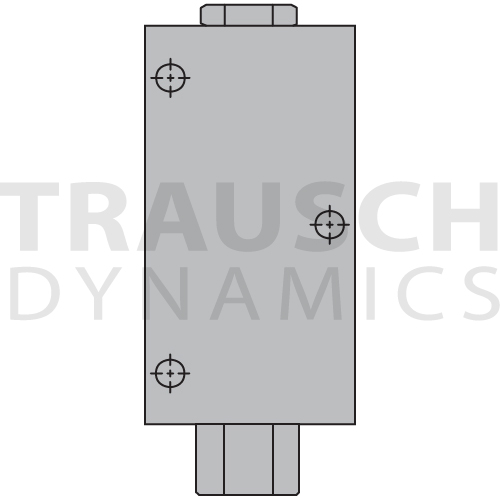

7013011DD-POT-B-NDeltaBuna7/8-143/8 NPTF $87.00 / EACH
Available
7013012DD-POT-B-SDeltaBuna7/8-14#8 SAE $85.50 / EACH
Usually ships in 4 week(s).
Expedite available.
   Page of 2
