Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7073904	6351010	10 VDC	20.0	4.80	2.08	0.75
7073905	6351012	12 VDC	20.0	7.20	1.67	0.75
7073906	6351020	20 VDC	20.0	19.00	1.05	0.75
7073907	6351024	24 VDC	20.0	28.80	0.83	0.75
7073908	6351036	36 VDC	20.0	64.80	0.56	0.75
7073909	6351048	48 VDC	20.0	110.20	0.44	0.75

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073904

6351010

10 VDC

20.0

4.80

2.08

0.75

7073905

6351012

12 VDC

20.0

7.20

1.67

0.75

7073906

6351020

20 VDC

20.0

19.00

1.05

0.75

7073907

6351024

24 VDC

20.0

28.80

0.83

0.75

7073908

6351036

36 VDC

20.0

64.80

0.56

0.75

7073909

6351048

48 VDC

20.0

110.20

0.44

0.75

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

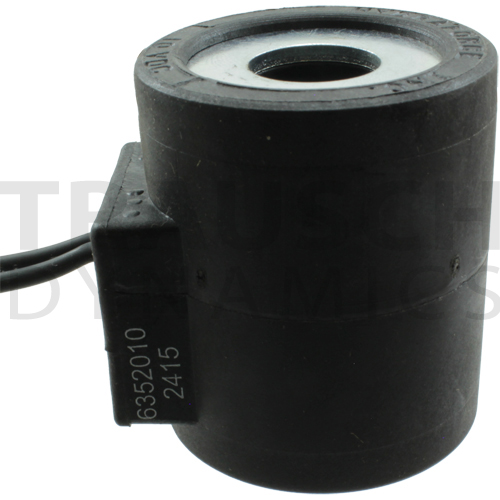

7073920	6352010	10 VDC	20.0	4.80	2.08	0.80
7014959	6352012	12 VDC	20.0	7.20	1.67	0.80
7073922	6352024	24 VDC	20.0	28.80	0.83	0.80

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073920

6352010

10 VDC

20.0

4.80

2.08

0.80

7014959

6352012

12 VDC

20.0

7.20

1.67

0.80

7073922

6352024

24 VDC

20.0

28.80

0.83

0.80

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7073912	6355012	12 VDC	20.0	7.20	1.67	0.95
7073913	6355024	24 VDC	20.0	28.80	0.83	0.95
7073914	6365024	24 VAC	20.0	23.60	0.83	0.95
7073915	6365115	115 VAC	20.0	568.00	0.17	0.95
7073916	6365230	230 VAC	20.0	2304.00	0.09	0.95

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073912

6355012

12 VDC

20.0

7.20

1.67

0.95

7073913

6355024

24 VDC

20.0

28.80

0.83

0.95

7073914

6365024

24 VAC

20.0

23.60

0.83

0.95

7073915

6365115

115 VAC

20.0

568.00

0.17

0.95

7073916

6365230

230 VAC

20.0

2304.00

0.09

0.95


Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

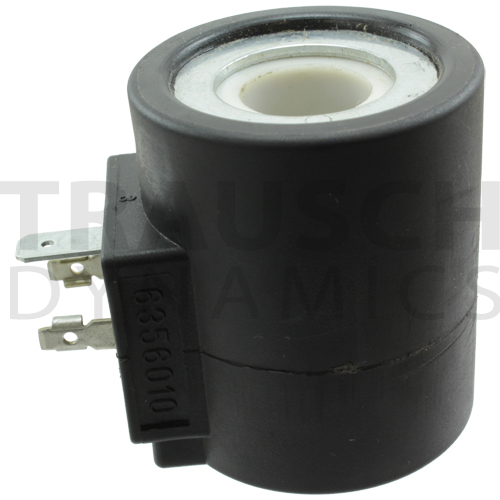

7074018	6356010	10 VDC	20.0	4.80	2.08	0.85
7073999	6356012	12 VDC	20.0	7.20	1.67	0.85
7074019	6356020	20 VDC	20.0	19.00	1.05	0.85
7074020	6356024	24 VDC	20.0	28.80	0.83	0.85
7074021	6356036	36 VDC	20.0	64.80	0.56	0.85
7074022	6356048	48 VDC	20.0	110.20	0.44	0.85
7074031	6366024	24 VAC	20.0	23.60	0.83	0.85
7012006	6366115	115 VAC	20.0	568.00	0.17	0.85
7074032	6366230	230 VAC	20.0	2304.00	0.09	0.85

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

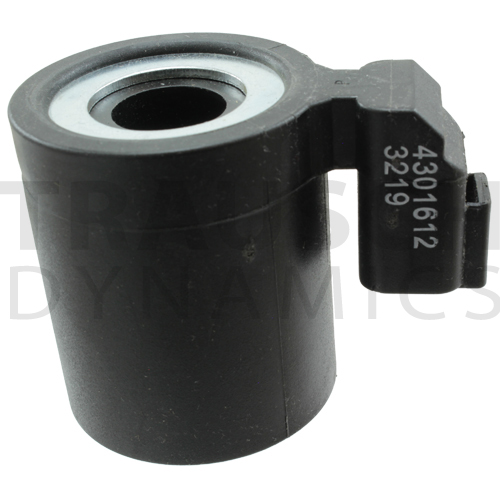

7074023	4301612	12 VDC	20.0	7.20	1.67	0.82
7074024	4301624	24 VDC	20.0	28.80	0.83	0.82

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074023

4301612

12 VDC

20.0

7.20

1.67

0.82

7074024

4301624

24 VDC

20.0

28.80

0.83

0.82

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

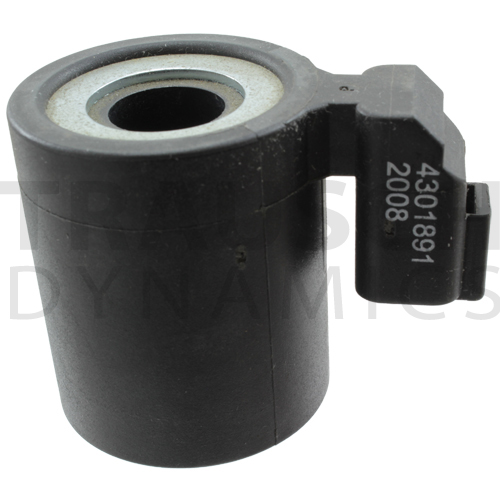

7074025	4301891	10 VDC	20.0	4.80	2.08	0.82
7074026	4301892	12 VDC	20.0	7.20	1.67	0.82
7074027	4301893	20 VDC	20.0	19.00	1.05	0.82
7074028	4301894	24 VDC	20.0	28.80	0.83	0.82

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074025

4301891

10 VDC

20.0

4.80

2.08

0.82

7074026

4301892

12 VDC

20.0

7.20

1.67

0.82

7074027

4301893

20 VDC

20.0

19.00

1.05

0.82

7074028

4301894

24 VDC

20.0

28.80

0.83

0.82

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7074029	4301862	12 VDC	20.0	7.20	1.67	0.82
7074030	4301864	24 VDC	20.0	28.80	0.83	0.82

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074029

4301862

12 VDC

20.0

7.20

1.67

0.82

7074030

4301864

24 VDC

20.0

28.80

0.83

0.82

Dual Spade Coils - Series 10

• Coil should always be installed with lettering facing up. • Spades are 1/4". • Hole diameter is 0.635".

Dual Wire Lead Coils - Series 10

• Coil should always be installed with lettering facing up. • Wire leads are 18 gauge wire and 18" long. • Hole diameter is 0.635".

1/2" Conduit & Dual Wire Lead Coils - Series 10

• Coil should always be installed with lettering facing up. • 1/2" Conduit Connection. • Wire leads are 18 gauge wire and 18" long. • AC service coils are interally rectified and can be used in 50 or 60 cycle (Hz) lines. • Hole diameter is 0.635".

DIN 43650 Connector - Series 10

• Coil should always be installed with lettering facing up. • Pins 1 and 2 are not polarity-sensitive. • AC service coils are interally rectified and can be used in 50 or 60 cycle (Hz) lines. • Hole diameter is 0.635".

Deutsch Connector - Series 10

• Coil should always be installed with lettering facing up. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.635".

Deutsch Connector, Integral Standard Diode - Series 10

• Coil should always be installed with lettering facing up. • These models include an integral standard diode. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.635".

Deutsch Connector, Integral Zener Diode - Series 10

• Coil should always be installed with lettering facing up. • These models include an integral Zener diode. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.635".
