Stock Number |
Mfr. Number |
Cubic Inch Disp |
Inlet |
Outlet |
Max RPM |
Max PSI |
GPM @ 1200 RPM | GPM @ 1800 RPM |

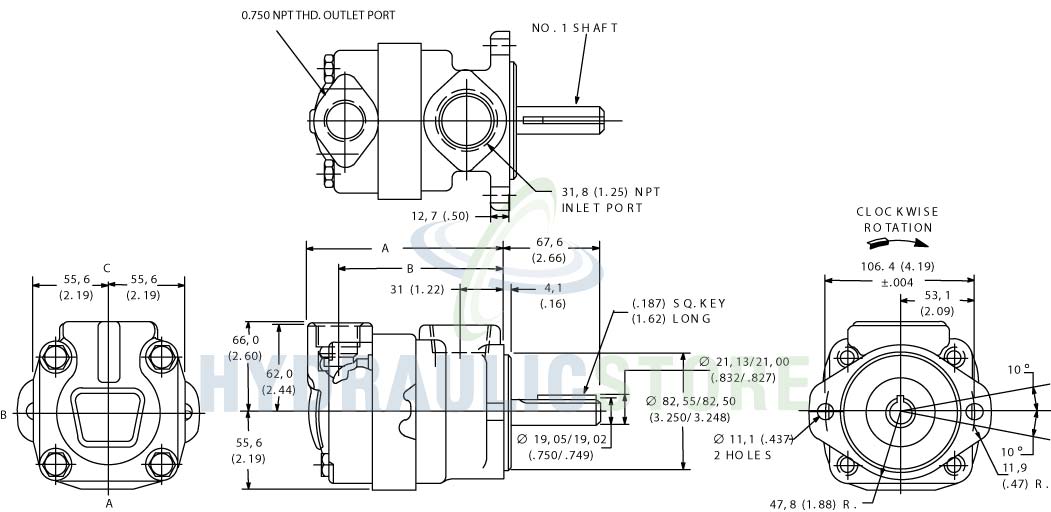

Rot. | A | B | Ship Wt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6302284 | V201P6P1A11 | 1.19 | 1-1/4" NPT | 3/4" NPT | 1800 | 2500 | 6.70 |
10.05 | CW | 4.93" | 4.02" | 18 |
| 6302307 | V201P7P1A11 | 1.39 | 1-1/4" NPT | 3/4" NPT | 1800 | 2500 | 7.22 |
10.83 |
CW | 5.18" | 4.27" | 18 |
| 6302330 | V201P8P1A11 | 1.62 | 1-1/4" NPT | 3/4" NPT | 1800 | 2500 | 8.42 | 12.62 | CW | 5.18" | 4.27" | 18 |
| 6302353 | V201P9P1A11 | 1.81 | 1-1/4" NPT | 3/4" NPT | 1800 | 2500 | 9.40 |
14.10 | CW | 5.18" | 4.27" | 18 |
| 6302376 | V201P11P1A11 | 2.22 | 1-1/4" NPT | 3/4" NPT | 1800 | 2500 | 11.53 | 17.30 | CW | 5.38" |
4.27" |
18 |
| 6302399 | V201P12P1A11 | 2.38 | 1-1/4" NPT | 3/4" NPT | 1800 | 2200 | 12.36 | 18.55 | CW | 5.52" | 4.61" | 18 |
| 6302422 | V201P13P1A11 | 2.59 | 1-1/4" NPT | 3/4" NPT | 1800 | 2200 | 13.45 | 20.18 | CW | 5.52" | 4.61" | 18 |
V20, Vickers Replacement Pumps
• V20 Series Vickers Vane Pumps • 100% Tested • Outlet Port is 180° In Relation to the Inlet • Direct Interchange For Vickers V20 • "Balanced Vane Type" • Fixed Displacement • Clockwise Rotation • Quieter Operation When Compared With Gear Pump • High Efficiency
