HYDRAULICSET ™ |
|
|
40 GPM Relief
Valve, #16 SAE Ports |
|
|
|
|
|
•
Pilot-Operated Spool-Type
Hydraulic Relief Valve •
Intended For Use as a
Pressure Limiting Device in
a Hydraulic Circuit •

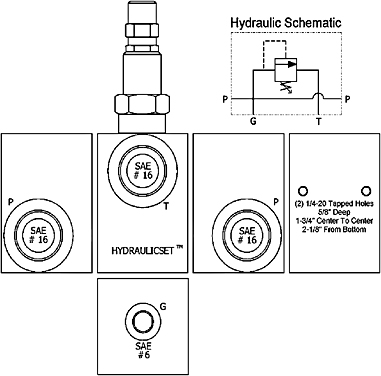

1-5/16-12 SAE #16 Pressures
& Tank • 9/16-18 SAE #6
Gauge Port (Plugged) • 40
GPM Maximum • 3000 PSI
Preset Pressure • 300-3500
PSI Adjustment Range •
Pressure Adjustment is 1/4”
Hex Allen Head (Located
Under Threaded Cap) •
Dimensions are 2.5” x 2.5” x
7.0” • Body Color is Black •
Body Material is Aluminum •
Buna N Seals • (2) 1/4-20
UNC Mounting Holes Located
On Rear • No Mounting
Restrictions |
|
|
|
|
|
|
|
|
|
▼
Click HS number for price
HS
Nbr |
Thread
Size/Type |
PSI
Range |
Ship
Wt. |
|
9502169 |
#16 SAE |
300-3500 |
3.00 |
|
|
|
|
|
Accessories |
|
|
|
1213976 |
Gauge Port Adapter Straight |
|
1218161 |
Gauge Port Adapter 90 Degree |
|
2312339 |
Gauge Port Diagnostic Tip |
 |
|
|
|
 |
|
|
|
|
