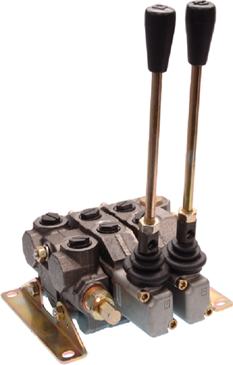

Manual Stackable Directional Control Valves • 17 GPM

• Manually Operated Stack Valves • 17 GPM Nominal (19 GPM Maximum) • Operating pressure to 3600 psi. Inlet relief is adjustable from 1300-3000 psi. • Maximum tank pressure is 430 psi. • Parallel Circuit • Load checks in each working section • Handles can be mounted vertically or horizontally • Balanced, negative overlapping, interchangeable spools • Power beyond capability is possible by purchasing a power beyond plug and installing it into the standard open center outlet • Tie rods include (2) nuts and (1) lock washer for the bottom two tie rods, the top tie rod gets (2) nuts and (2) lock washers • 30 micron filtration recommended • The manually operated sections can be stacked together with 12 VDC electric valve sections



A valve set is made up of:

(1) inlet section
(1 to 10) working sections
(1) outlet section
(3) tie rods - choose by number of working sections
(2) mounting brackets
(1 to 10) handles, one per working section
Need help?  Give us a call

▼ Click HS number for price
HS
Nbr		 Section type Port Size Ship
Wt.
7153514 inlet with 1300-3000 psi relief #10 oring 5.0
7153518 working, 4 way spring centered cylinder #10 oring 7.0
7153528 working, 4 way spring centered motor #10 oring 7.0
7153524 working, 4 way detented motor #10 oring 7.0
7153530 working, 3 way spring centered cylinder #10 oring 7.0
7153558 outlet open center #10 oring 4.0
1500233 power beyond plug (installs internally) #10 oring 0.3
7153870 tie rod for (1) working section (3 req'd)   0.2
7153872 tie rod for (2) working sections (3 req'd)   0.2
7153856 tie rod for (3) working sections (3 req'd)   0.2
7153858 tie rod for (4) working sections (3 req'd)   0.2
7153878 tie rod for (5) working sections (3 req'd)   0.2
7153880 tie rod for (6) working sections (3 req'd)   0.3
7153866 tie rod for (7) working sections (3 req'd)   0.3
7153868 tie rod for (8) working sections (3 req'd)   0.3
7153886 tie rod for (9) working sections (3 req'd)   0.3
7153888 tie rod for (10) working sections (3 req'd)   0.3
7154188 Mounting Bracket (2 req'd)   1.0
7154098 7.3" Handle (Standard Length)   0.3
7154102 9.8" Handle   0.3
7154106 11.8" Handle   0.3
7154110 13.8" Handle   0.3
If a power beyond plug is used, the tank port must still be connected to tank.
Tie rod torque is to be 150 inch Lbs.
