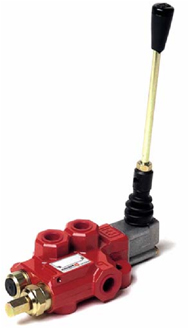

Manual Monoblock Directional Control Valves • 12 GPM

Manually Operated Stack Valves • 12 GPM Nominal (14 GPM Maximum, Single Spool Rated for 10 GPM) • Operating pressure to 3600 psi. Inlet relief is adjustable from 1300-3000 psi. • Maximum tank pressure is 430 psi. • Parallel Circuit • Single load hold check valve • Handles can be mounted vertically or horizontally • Balanced, negative overlapping, interchangeable spools • Power beyond capability • 30 micron filtration recommended • Mounting brackets are not required



A valve set is made up of:

(1) valve
(1 to 6) handles, one per spool
Need help?  Give us a call.



Click HS number for price
HS
Nbr
Description All Ports Ship
Wt.
7153106 1 Spool, Relief Valve (No Power Beyond Available) #8 oring 5.0
7153140 2 Spools, Relief Valve, Power Beyond Capable #8 oring 11.0
7153162 3 Spools, Relief Valve, Power Beyond Capable #8 oring 13.0
7153176 4 Spools, Relief Valve, Power Beyond Capable #8 oring 16.0
7153180 5 Spools, Relief Valve, Power Beyond Capable #8 oring 18.0
7153182 6 Spools, Relief Valve, Power Beyond Capable #8 oring 21.0
1500231 power beyond plug (installs internally) #8 oring 0.1
7154096 5.9" Handle (Standard Length)   0.3
7154100 7.8" Handle   0.3
7154104 9.8" Handle   0.3
7154108 11.8" Handle   0.3
If a power beyond plug is used, the tank port must still be connected to tank.
