Dash
Number |
Nominal
Size |
Code 62 |
|
Bolt Centers |
Thread |
|

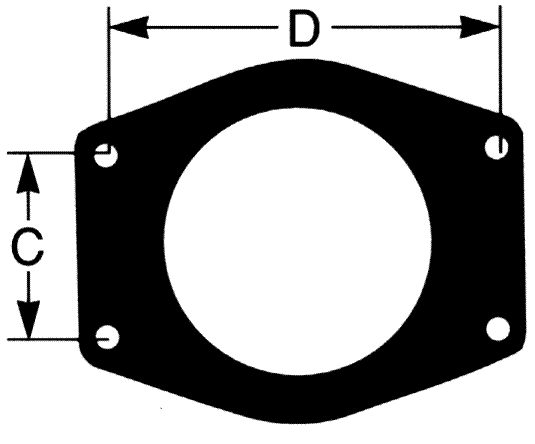

Dim C |
Dim D |
|
-8 |
1/2 |
0.718 |
1.594 |
5/16-18 |
|
-12 |
3/4 |
0.937 |
2.000 |
3/8-16 |
|
-16 |
1 |
1.093 |
2.250 |
7/16-14 |
|
-20 |
1-1/4 |
1.250 |
2.625 |
1/2-13 |
|
-24 |
1-1/2 |
1.437 |
3.125 |
5/8-11 |
|
-32 |
2 |
1.750 |
3.812 |
3/4-10 |
|
-40 |
2-1/2 |
2.312 |
4.875 |
7/8-9 |
|
-48 |
3 |
2.812 |
6.000 |
1 1/8-7 |
|
|
 |
 |
Code 62
NPT Flanges |
|
|
▼
Click HS number for price |
HS
Nbr |
NPT |
Flange
Size |
Oring |
Bolts |
Ship
Wt. |
|
|
|
|
|
|
|
|
2191957 |
1/2" |
1/2" |
210 |
5/16-18 |
1.35 |
|
2191921 |
3/4" |
3/4" |
214 |
3/8-16 |
2.00 |
|
2191927 |
1" |
1" |
219 |
7/16-14 |
3.11 |
|
2191933 |
1-1/4" |
1-1/4" |
222 |
1/2-13 |
3.30 |
|
2191939 |
1-1/2" |
1-1/2" |
225 |
5/8-11 |
2.25 |
|
2191945 |
2" |
2" |
228 |
3/4-10 |
9.51 |
|
|
|
Code 62
SAE Flanges |
|
|
▼
Click HS number for price |
HS
Nbr |
SAE
Oring |
Flange
Size |
Oring |
Bolts |
Ship
Wt. |
|
|
|
|
|
|
|
|
2192050 |
#8 |
1/2" |
210 |
5/16-18 |
1.00 |
|
2192017 |
#12 |
3/4" |
214 |
3/8-16 |
1.00 |
|
2192023 |
#16 |
1" |
219 |
7/16-14 |
2.00 |
|
2192029 |
#20 |
1-1/4" |
222 |
1/2-13 |
2.50 |
|
2192035 |
#24 |
1-1/2" |
225 |
5/8-11 |
2.75 |
|
2192041 |
#32 |
2" |
228 |
3/4-10 |
9.51 |
|
 |
Code 62
Split Flanges |
|
|
▼
Click HS number for price |
HS
Nbr |
Flange
Size |
A |
B |
C |
Ship
Wt. |
|
|
|
|
|
|
|
|
1992195 |
1/2 |
1.57" |
0.72" |
5/16" |
0.65 |
|
1992199 |
3/4 |
2.00" |
0.94" |
13/32" |
1.10 |
|
1992206 |
1 |
2.25" |
1.09" |
15/32" |
1.50 |
|
1992213 |
1-1/4 |
2.63" |
1.25" |
17/32" |
2.50 |
|
1992220 |
1-1/2 |
3.12" |
1.44" |
21/32" |
4.00 |
|
1992227 |
2 |
3.81" |
1.75" |
25/32" |
5.00 |
|
|
