Directional Control Valves 5000 Series
• Prince Monoblock Directional Valves • 5000 Series (1, 2, and 3 spool valves) • Valves available have spring centered spools or spring centered spools with float position • Conversion to closed center or power beyond is possible with the addition of the proper plug to backside of valve • Inlet relief is adjustable from 1500 - 3000 psi. • Maximum operating pressure is 3000 psi. • Maximum inlet flow is 30 GPM • These listed are all 4 way valves (double acting)
Fig. A Fig. B Fig. C Fig. D Fig. E
Click HS number for price
HS
Nbr
Mfgr
Nbr
       Description Spool 1 Spool 2 Spool 3 In & Out
Ports
Work
Ports
Fig. Ship
Wt.

7110306 RD513AA5A4B1 One spool valve S.A. Cyl., sprng ctr NA NA 3/4"  NPTF 3/4" NPTF A 14.00
7110275 RD512CA5A4B1 One spool valve Cyl sprg ctr NA NA 3/4" NPTF 1/2" NPTF A 14.00
7110343 RD513CB5A4B1 One spool valve Cyl detented NA NA 3/4"  NPTF 3/4" NPTF A 14.00
7110258 RD512GG5A4B1 One spool valve Cyl float NA NA 3/4"  NPTF 1/2" NPTF A 14.00
7111615 RD522CCAA5A4B1 Two spool valve Cyl sprg ctr Cyl sprg ctr NA 3/4"  NPTF 1/2" NPTF B 25.00

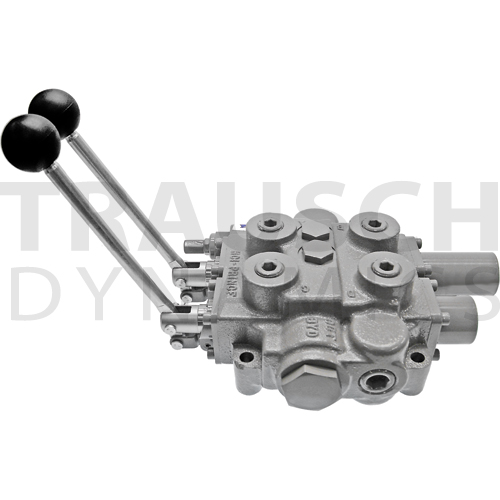

7111598 RD522GCGA5A4B1 Two spool valve Cyl float sprg ctr Cyl sprg ctr NA 3/4"  NPTF 1/2" NPTF C 25.00

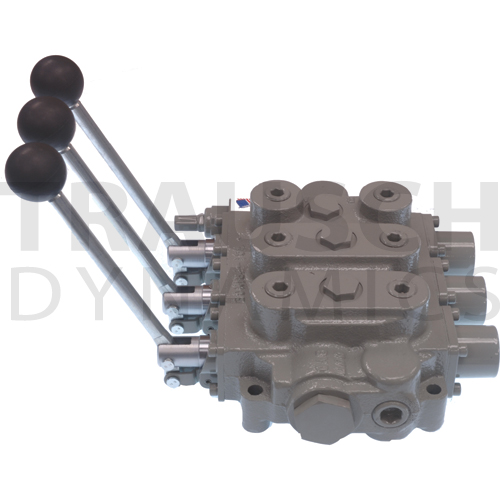

7112132 RD532CCCAAA5A4B1 Three spool valve Cyl sprg ctr Cyl sprg ctr Cyl sprg ctr 3/4"  NPTF 1/2" NPTF D 36.00

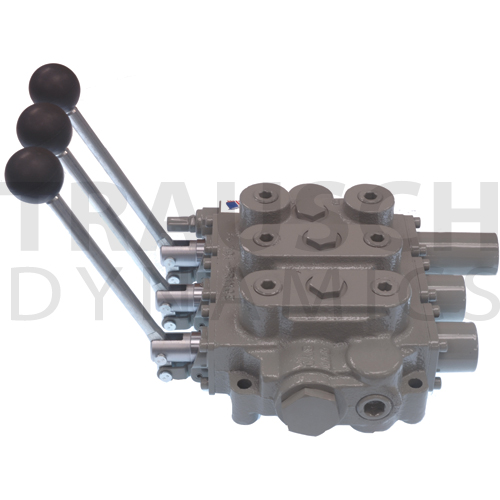

7112115 RD532GCCGAA5A4B1 Three spool valve Cyl float sprg ctr Cyl sprg ctr Cyl sprg ctr 3/4"  NPTF 1/2" NPTF E 38.00
7110979   Power Beyond Plug 3/4" NPT (Works in all of the above Valves)     1.00
7111013   Closed center conversion plug (Works in all of the above Valves)     1.00
7111081   2 spool joystick kit   (Works with Part # 7111615 and # 7111598)   5.00
If power beyond plug is used, the "out" port must be connected to the tank line.
