Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7073899	6301006	6 VDC	14.7	2.46	2.44	0.40
7073896	6301010	10 VDC	14.7	6.80	1.47	0.40
9005114	6301012	12 VDC	14.7	9.80	1.22	0.40
7073900	6301020	20 VDC	14.7	27.20	0.74	0.40
7073901	6301024	24 VDC	14.7	39.30	0.61	0.40
7073902	6301036	36 VDC	14.7	88.30	0.41	0.40
7073903	6301048	48 VDC	14.7	156.60	0.31	0.40

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073899

6301006

6 VDC

14.7

2.46

2.44

0.40

7073896

6301010

10 VDC

14.7

6.80

1.47

0.40

9005114

6301012

12 VDC

14.7

9.80

1.22

0.40

7073900

6301020

20 VDC

14.7

27.20

0.74

0.40

7073901

6301024

24 VDC

14.7

39.30

0.61

0.40

7073902

6301036

36 VDC

14.7

88.30

0.41

0.40

7073903

6301048

48 VDC

14.7

156.60

0.31

0.40

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7073917	6302010	10 VDC	14.7	6.80	1.47	0.45
7073918	6302012	12 VDC	14.7	9.80	1.22	0.45
7073919	6302024	24 VDC	14.7	39.30	0.61	0.45

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073917

6302010

10 VDC

14.7

6.80

1.47

0.45

7073918

6302012

12 VDC

14.7

9.80

1.22

0.45

7073919

6302024

24 VDC

14.7

39.30

0.61

0.45

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7073910	6305012	12 VDC	14.7	9.80	1.22	0.60
7073911	6305024	24 VDC	14.7	39.30	0.61	0.60
7012007	6315024	24 VAC	14.7	31.20	0.61	0.60
7012005	6315115	115 VAC	14.7	765.50	0.13	0.60
7012009	6315230	230 VAC	14.7	3035.00	0.06	0.60

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7073910

6305012

12 VDC

14.7

9.80

1.22

0.60

7073911

6305024

24 VDC

14.7

39.30

0.61

0.60

7012007

6315024

24 VAC

14.7

31.20

0.61

0.60

7012005

6315115

115 VAC

14.7

765.50

0.13

0.60

7012009

6315230

230 VAC

14.7

3035.00

0.06

0.60


Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7074007	6306010	10 VDC	14.7	6.80	1.47	0.50
7073982	6306012	12 VDC	14.7	9.80	1.22	0.50
7074008	6306020	20 VDC	14.7	27.20	0.74	0.50
7074009	6306024	24 VDC	14.7	39.30	0.61	0.50
7074010	6306036	36 VDC	14.7	88.30	0.41	0.50
7074011	6306048	48 VDC	14.7	156.60	0.31	0.50
7073924	6316024	24 VAC	14.7	31.20	0.61	0.50
7073955	6316115	115 VAC	14.7	765.50	0.13	0.50
7073971	6316230	230 VAC	14.7	3035.00	0.06	0.50

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

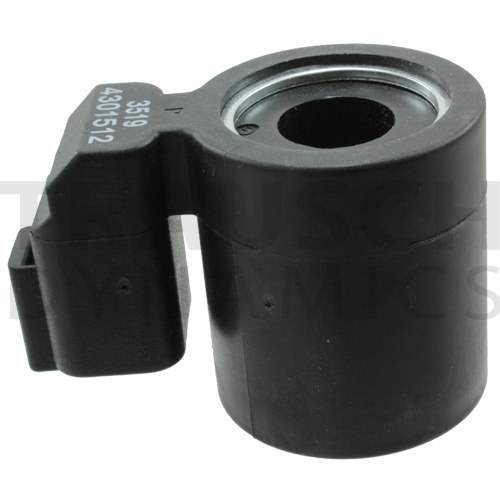

7074012	4301512	12 VDC	14.7	9.80	1.22	0.42
7074013	4301524	24 VDC	14.7	39.30	0.61	0.42

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074012

4301512

12 VDC

14.7

9.80

1.22

0.42

7074013

4301524

24 VDC

14.7

39.30

0.61

0.42

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.

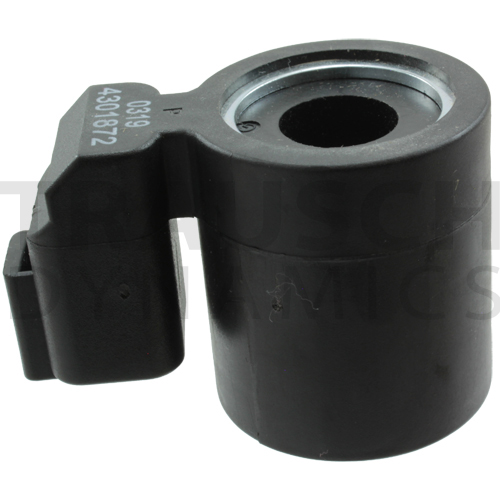

7074014	4301872	12 VDC	14.7	9.80	1.22	0.42
7074015	4301874	24 VDC	14.7	39.30	0.61	0.42

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074014

4301872

12 VDC

14.7

9.80

1.22

0.42

7074015

4301874

24 VDC

14.7

39.30

0.61

0.42

Stock Number	Mfr. Number	Voltage	Watts	Resistance (DC) @ 68°F Ohms	Initial Current Draw Amps	Ship Wt.
7074016	4301852	12 VDC	14.7	9.80	1.22	0.42
7074017	4301854	24 VDC	14.7	39.30	0.61	0.42

Stock Number

Mfr. Number

Voltage

Watts

Resistance
(DC) @ 68°F
Ohms

Initial
Current Draw
Amps

Ship Wt.

7074016

4301852

12 VDC

14.7

9.80

1.22

0.42

7074017

4301854

24 VDC

14.7

39.30

0.61

0.42

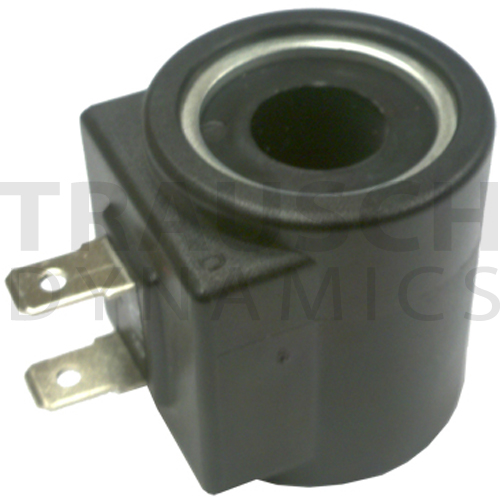

Dual Spade Coils - Series 08

• Coil should always be installed with lettering facing up. • Spades are 1/4". • Hole diameter is 0.510".

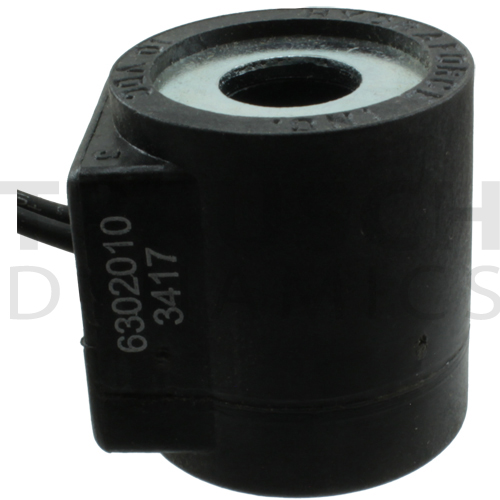

Dual Wire Lead Coils - Series 08

• Coil should always be installed with lettering facing up. • Wire leads are 18 gauge wire and 18" long. • Hole diameter is 0.510".

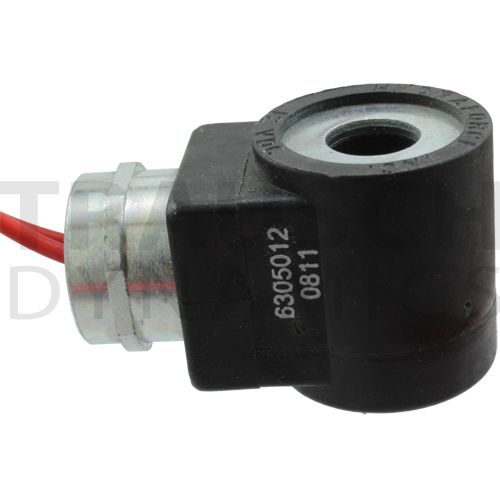

1/2" Conduit & Dual Wire Lead Coils - Series 08

• Coil should always be installed with lettering facing up. • 1/2" Conduit Connection. • Wire leads are 18 gauge wire and 18" long. • AC service coils are interally rectified and can be used in 50 or 60 cycle (Hz) lines. • Hole diameter is 0.510".

DIN 43650 Connector - Series 08

• Coil should always be installed with lettering facing up. • Pins 1 and 2 are not polarity-sensitive. • AC service coils are interally rectified and can be used in 50 or 60 cycle (Hz) lines. • Hole diameter is 0.510".

Deutsch Connector - Series 08

• Coil should always be installed with lettering facing up. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.510".

Deutsch Connector, Integral Standard Diode - Series 08

• Coil should always be installed with lettering facing up. • These models include an integral standard diode. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.510".

Deutsch Connector, Integral Zener Diode - Series 08

• Coil should always be installed with lettering facing up. • These models include an integral Zener diode. • Mating connector is Deutsch # DT06-2S. • Hole diameter is 0.510".
