Delta Power C Series Pumps

Delta fixed clearance pumps are designed to provide greater torque efficiencies – especially at high speeds. Each model is designed to operate as either a single rotation or bi-rotational pump, depending on the application. These pumps are designed with long term performance in mind, including: high-strength cast iron bodies, hardened alloy gears and shafts, bronze bearings, and Buna-N sealing members. Integral check valves permit bidirectional rotation to simplify plumbing. Because of their long proven construction, these pumps are found in every type of mobile and industrial applications. They can be expected to perform for the life expectancy of the equipment on which installed.
Installation Notes: On models C1-C8, be especially careful since these units require that the mounting bolts are installed to complete the assembly. The two shipping bolts are not sufficient to make the assembly intact and care should be exercised while handling in that condition. Bolt torque requirements are 13 to 17 ft-lbs.

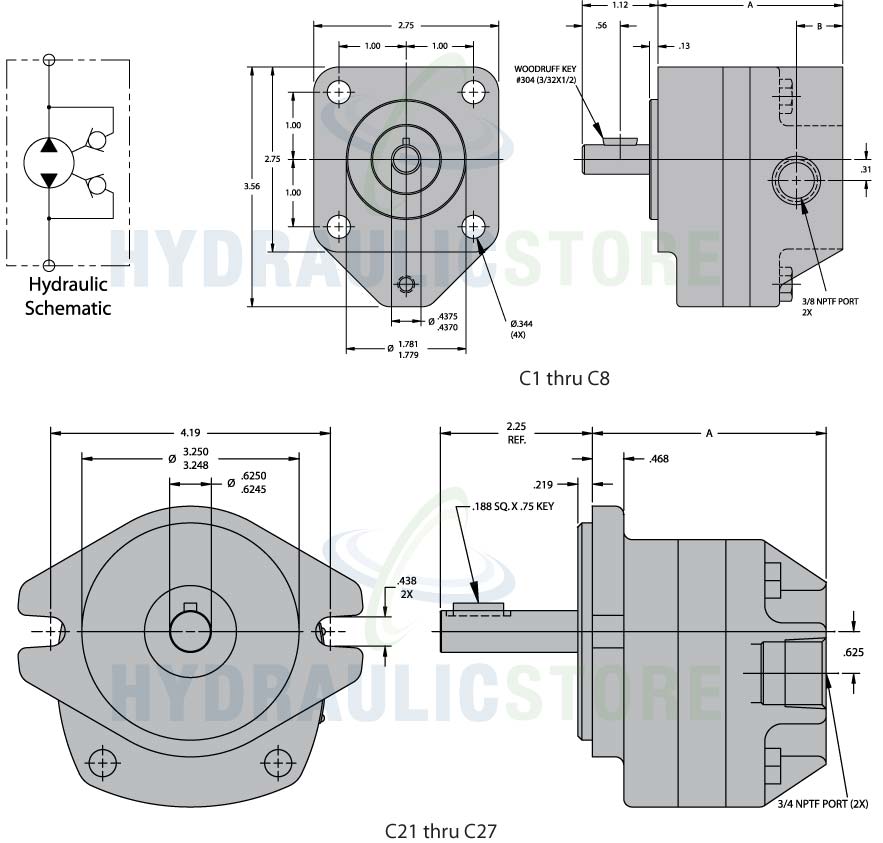

C1 thru C8

C21 thru C27

Stock Number	Mfr. Number	Cubic Inch Disp	Continious PSI	Max PSI	RPM Range	A	Ship Wt.
6105009	C1	0.065	1500	2400	0 - 5000	2.48"	4.8
6104000	C2	0.108	1500	2400	0 - 5000	2.57"	4.9
6105000	C4	0.187	1500	2400	0 - 4000	2.74"	5.0
6105003	C6	0.316	1100	1750	0 - 3000	3.02"	5.1
6105021	C8	0.468	750	1200	0 - 1800	3.34"	5.2
6105027	C21	0.411	1500	2400	0 - 5000	3.21"	10.8
6105017	C23	0.702	1500	2400	0 - 4000	3.56"	11.0
6104048	C25	0.981	1000	1600	0 - 3000	3.78"	11.2
6105018	C27	1.460	700	1100	0 - 1100	4.21"	11.4
