Common Hydraulic Fittings/Adapters
NPT Fittings | NPT Swivel Fittings | JIC to NPT Adapters  | JIC Adapters | O-ring to NPT Adapters
O-ring to JIC Adapters  | O-ring Adapters  | Hose Bead Fittings

Sizing Chart

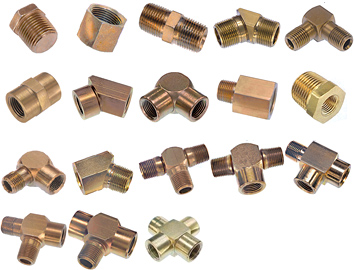

NPT Fittings
Click fitting/adapter to view

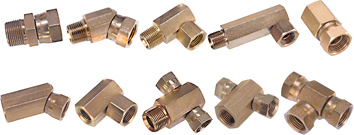

NPT Swivel Fittings
Click fitting/adapter to view






JIC to NPT Adapters
Click fitting/adapter to view

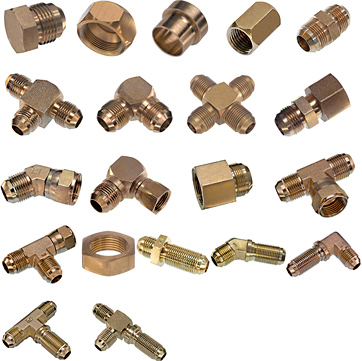

JIC Adapters
Click fitting/adapter to view

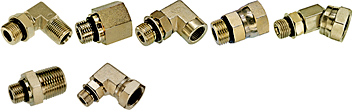

O-ring to NPT Adapters
Click fitting/adapter to view

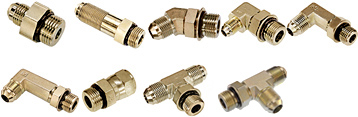

O-ring to JIC Adapters
Click fitting/adapter to view






O-ring Adapters
Click fitting/adapter to view






Hose Bead Fittings
Click fitting/adapter to view







Thread Sealants
HS
Nbr		 Ritelok
Nbr		 Loctite
Nbr		 Description Color Size Ship
Wt.
3660001 HP69-50 56931 Hydraulic Sealant Brown 50ml 0.20
3660051 PS65-50 56531 Teflon Pipe Sealant Standard White 50ml 0.20




Adapter Sizing Chart
NPT Threads measure 1/4" larger than their actual size.  For example, a 1/4" NPT will actually measure 1/2" on the O.D. of the threads.  JIC and SAE thread O.D.'s measure as listed below.  The first number listed is the size of thread, the second number is the threads per inch.
Size NPT
(Pipe)		 JIC
(37°)		 SAE
(Oring)
2 1/8 - 27 5/16 - 24 5/16 - 24
3 - 3/8 - 24 3/8 - 24
4 1/4 - 18 7/16 - 20 7/16 - 20
5 - 1/2 - 20 1/2 - 20
6 3/8 - 18 9/16 - 18 9/16 - 18
8 1/2 - 14 3/4 - 16 3/4 - 16
10 - 7/8 - 14 7/8 - 14
12 3/4 - 14 1-1/16 - 12 1-1/16 - 12
14 - 1-3/16 - 12 1-3/16 - 12
16 1 - 11-1/2 1-5/16 - 12 1-5/16 - 12
20 1-1/4 - 11-1/2 1-5/8 - 12 1-5/8 - 12
24 1-1/2 - 11-1/2 1-7/8 - 12 1-7/8 - 12
32 2 - 11-1/2 2-1/2 - 12 2-1/2 - 12





Thread Sizing Tool
Allows the user to properly identify threads of all hydraulic types.  This handy kit includes a thread pitch gauge (American and Metric), inside & outside caliper (inches and millimeters), (2) seat angle gauges (37 degree/45 degree & 12 degree/30 degree) 24-page international measuring & identification guide and instruction booklet.  A carrying case is standard for easy and convenient storage.
HS
Nbr		 Ship
Wt.

1709291 1
