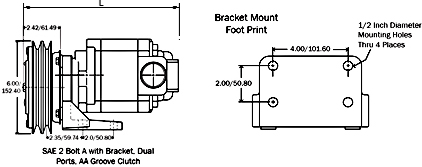

Clutch Pumps
• Order Easily Mounted Clutch Separately • Clockwise Rotation • High Strength Alloy Steel Gear and Shaft Set • Rugged 3-Piece Cast Iron Doweled Construction • Mounting is SAE Type 'A' Bracket with Pad Mount • Pump is Pressure Balanced for High Efficiency • Pump is Dual Ported (One Side Inlet, One Back Inlet, One Side Outlet & One Back Outlet)
Click HS number for price
HS
Nbr
Cubic in
per rev
GPM @
1000 RPM
GPM @
2000 RPM
GPM @
3000 RPM
RPM
Range
Max
PSI
Inlet
Ports Size
Outlet
Ports Size
L
(in)
Ship
Wt.
6200207 1.24 4.9 9.8 14.6 600-3000 3500 #20 SAE #12 SAE 8.75 32
6200213 1.86 7.4 14.6 22.0 600-3000 3200 #20 SAE #12 SAE 9.25 34
6200219 2.48 10.0 19.5 29.3 600-3000 2500 #20 SAE #12 SAE 9.75 35


 *Order Pump & Clutch Separately (Pump Includes Bracket)


Clutches for Clutch Pumps
• For Use With Clutch Pumps 6200207, 6200213 & 6200219 • Rugged 120 ft. lb. After Burnishing (see Burnishing Tips) • Easily Mounts Onto Pumps With 4 Bolts • Clutch Draws 3.9 Amps When Engaged • E-Coated to Protect Against Corrosion • Solid Forged Rotor
Click HS number for price
HS
Nbr
Pulley
Diameter
Belt
Type

Fig.
Ship
Wt.

6200223 6" AA Groove A 10

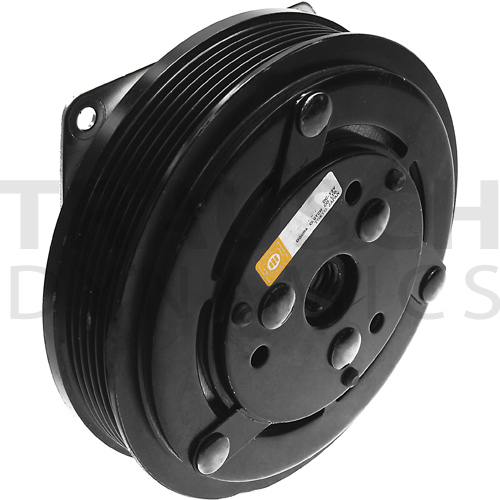

6200224 6" 6 Groove Type K Serpentine B 10

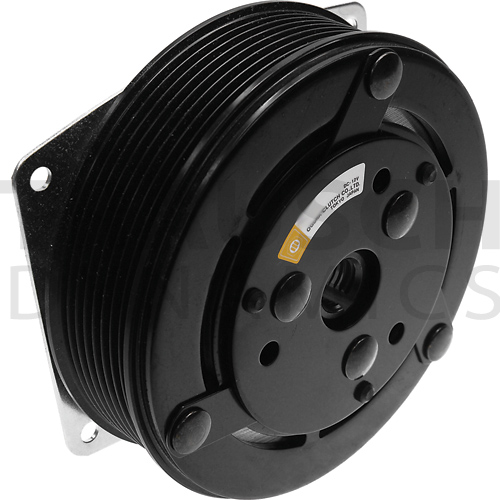

6200225 5.47" 8 Groove Type K Serpentine C 9





Fig. B

Fig. A

Fig. C

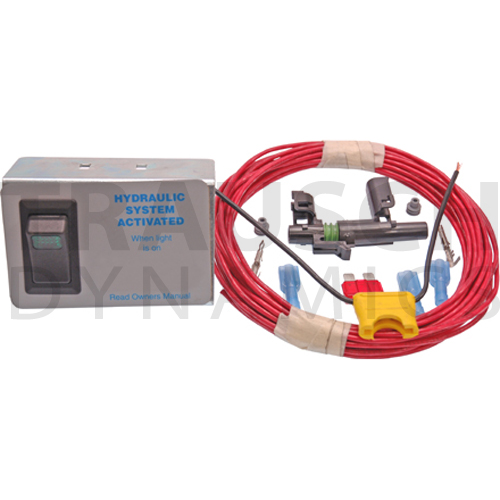

Switch Kit for Clutch Pumps
• Complete with all necessary mounting hardware inclucing 20 ft. of 16-gauge wire • fuse holder with 10 amp fuse • SPST rocker switch with pilot dependent light and dash mounting bracket • For use with clutches 6200223, 6200224 and 6200225.
Click HS number for price
HS
Nbr

Fig.
Ship
Wt.

6200222 D 2




Clutch Pump Switch Kit 6200222

Fig. D


Clutch Pump Mounting Kits
The year, make, model, gas or diesel, engine size must be known to order the correct mounting kit for your truck. • There are hundreds of kits available: CHEVY, DODGE, FORD, FREIGHTLINER, INTERNATIONAL, ISUZU, MITSUBISHI & MORE. • Below is list of a few popular models, please call for further assistance. USE THE BELOW CHART AS A GUIDE ONLY. LET US HELP YOU CHOOSE THE RIGHT COMBINATION OF COMPONENTS.
Click HS number for price
HS
Nbr
Model
Year/s
Make/Identifier Engine
Size/s
Chassis
6420002 1999-2006 Chevy/VORTEC 4.8, 5.3, 6.0 Silverado 1500 & 2500 HD, 3500
6420003 2001-2006 Chevy/DURAMAX 6.6 Silverado 2500 HD, 3500 w/o Dual Alternator
6420004 2004-2006 Chevy/DURAMAX 6.6 C-4500, 5500 w/ or w/o Dual Alternator or AC
6420005 2003-2006 Dodge/CUMMINS ISB 5.9 ISB, 24 Vlv R-250 & 350 w/ AC Only
6420006 2005-2006 Ford/TRITON 5.4, 6.8 F-250, 550 Super Duty w/ Bearing Support
6420007 2005-2006 Ford/POWERSTROKE 6.0 F250-550 Super Duty w/o Dual Alternator


  *Order Pump, Clutch, and Mounting Kits Separately
