Circuit Selector Valve
Fig. E
Double Selector Valve
Fig. A
12 vdc |
24 vdc
Double Selector Valve
Fig. B
Fig. C |
|
|
|
Circuit Selector Valve |
|
These bankable selector valves are excellent for use on machines
which require extra hydraulic functions. Bank up to 3 valves
together with tie rod kits shown. *DIN connector to be ordered
separately. |
• Max Pressure: 3600 psi • Max Flow: 20 GPM • Ports:
#8 O-ring (3/4-16 SAE) • Voltage: 12VDC standard or 24VDC option
(24VDC coil must be ordered separately) • "In" ports are P1 and P2 •
Oil passes to C1 and C4 when coil is de-energized • Oil passes to C2
and C3 when coil is energized.
▼
Click HS number for price |
HS
Nbr |
Fig |
Description |
Ship
Wt |
|
|
|
|
|
|
7120001 |
E |
Selector Valve 12VDC |
9 |
|
7120007 |
F |

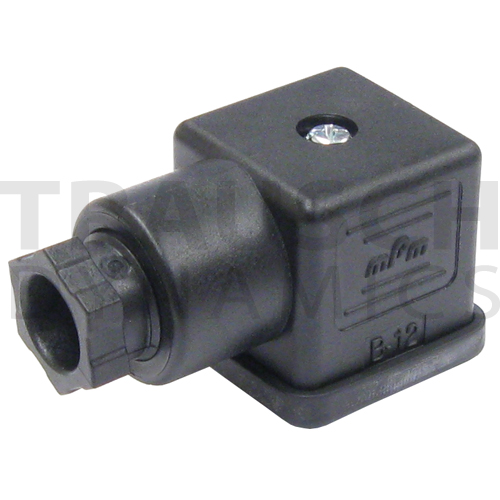

*DIN Connector |
0.2 |
|
7120002 |
|
2-Section Tie Rod Kit |
1 |
|
7120003 |
|
3-Section Tie Rod Kit |
1 |
|
7120005 |
|
Coil 12VDC Replacement |
2 |
|
7120006 |
|
Coil 24VDC Replacement |
2 |
|
* Call for quantity discounts. |
DIN Connector
Fig. F
|
|
|
Double Selector Valve |
|
• Electric 12 vdc, 24 vdc, 115 vac, or 125 vac • 10 gpm
@ 3000 psi maximum • #8 SAE o ring porting (3/4"16) • 12
vdc and 24 vdc coils have double spade connections • 125
vac coils have a conduit connection with wire leads. |
This is a double selector valve. This valve,
unenergized, will run cylinder or motor number 1. This
valve, energized, will run cylinder or motor number 2.
▼
Click HS number for price |
HS
Nbr |
Fig |
Volts |
Ship
Wt. |
|
|
|
|
|
|
9500890 |
A |
12 vdc |
5.49 |
|
9500829 |
A |
24 vdc |
5.49 |
|

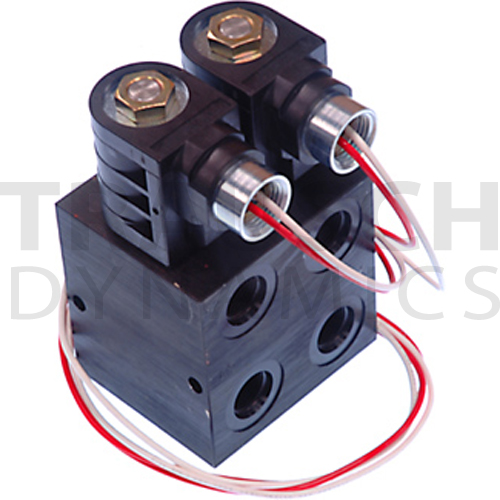

9500670 |
B |
125 vac |
5.49 |
|
* Call for quantity discounts. |
 |
| |
|
|
Fig. D
Fig. G
Control Handle |
|
|
|
Switch Boxes |
These switch boxes contain lighted rocker switches. The boxes are
powder coated steel. Each individual switch is fused and has its
own corresponding colored wire leads which are 10 feet long. Each
box has wires for positive and ground. Fuses are automotive type.
AMP ratings are in 12 VDC.
▼
Click HS number for price |
HS
Nbr |
Fig. |
Description |
Switch Rating |
Fuse |
Dimensions
(in.) LxWxH |
Ship
Wt. |
|
|
|
|
|
|
|
|
|

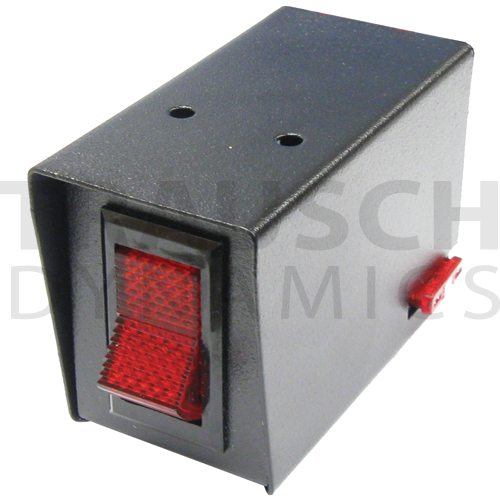

5058702 |
C |
Single switch box |
20 AMP |
10 AMP |
3.5 x 2 x 2.5 |
2 |
|
5058707 |

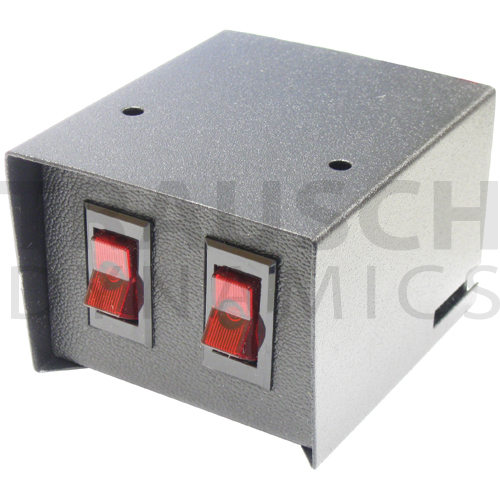

D |
Double switch box |
20 AMP |
15 AMP |
3.5 x 3 x 2.5 |
3 |
|

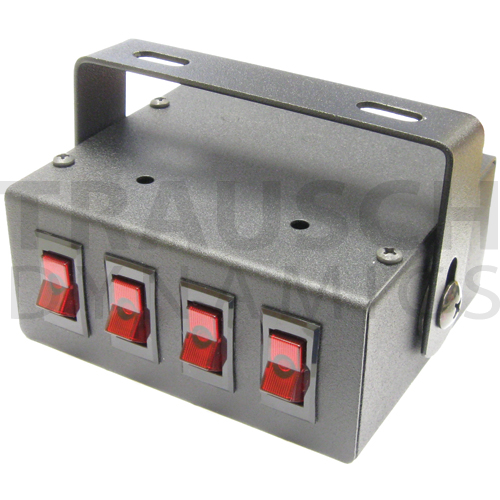

5058703 |
G |
Quadruple switch box |
20 AMP |
20 AMP |
4 x 4.5 x 2 |
4 |
|
|
|
|
|
|
|
|
|
For triple switch box, use item#
5058703. |
|
|
|
|
|
Great for use with our hydraulic circuit selector valves. |
|
|
|
|
Control Handle |
|
This control handle features (3) switches to control valve functions
at 12VDC. Two buttons are on the face to be operated by the thumb
and one trigger button to be controlled by the index finger. |
• 10 AMP Snap Action Switches • 6" Bent Tube for Mounting to
Existing Tractor Handle • 360° Mounting • (2) Mounting Clamps • 10'
Wire Leads • Self-Stripping Fuse for Power Lead • Roll of Electrical
Tape Included
▼
Click HS number for price
HS
Nbr |
Description |
Ship
Wt. |
|
|
|
|
|
9501700 |
Control Handle 3-Function |
8 |
