Stock Number |
Mfr. Number |
Cubic Inch Disp. |
Ports |
X |
Y |
Max RPM |
Max PSI | Torque (lb-in) at max PSI | Ship Wt. |
|---|---|---|---|---|---|---|---|---|---|
| 5958000 | 103-1537 | 3.6 | #10 SAE Oring | 0.30" | 5.43" | 962 | 2000 | 943 | 17 |
| 5958036 | 103-1540 | 3.6 | 1/2" NPTF | 0.30" | 5.43" | 962 | 2000 | 943 | 17 |
| 5958004 | 103-1034 | 4.6 | #10 SAE Oring | 0.39" | 5.52" | 762 | 2000 | 1228 | 18 |
| 5958040 | 103-1026 | 4.6 | 1/2" NPTF | 0.39" | 5.52" | 762 | 2000 | 1228 | 18 |
| 5958006 | 103-1035 | 5.7 | #10 SAE Oring | 0.47" | 5.61" | 585 | 2000 | 1591 | 18 |
| 5958044 | 103-1027 | 5.7 | 1/2" NPTF | 0.47" | 5.61" | 585 | 2000 | 1591 | 18 |
| 5958008 | 103-1538 | 7.3 | #10 SAE Oring | 0.61" | 5.75" | 470 | 2000 | 2010 | 19 |
| 5958048 | 103-1541 | 7.3 | 1/2" NPTF | 0.61" | 5.75" | 470 | 2000 | 2010 | 19 |
| 5958012 | 103-1539 | 8.8 | #10 SAE Oring | 0.73" | 5.87" | 385 | 1900 | 2332 | 19 |
| 5958052 | 103-1542 | 8.8 | 1/2" NPTF | 0.73" | 5.87" | 385 | 1900 | 2332 | 19 |
| 5958016 | 103-1036 | 10.1 | #10 SAE Oring | 0.84" | 5.98" | 353 | 1900 | 2567 | 19 |
| 5958056 | 103-1028 | 10.1 | 1/2" NPTF | 0.84" | 5.98" | 353 | 1900 | 2567 | 19 |
| 5958020 | 103-1037 | 11.4 | #10 SAE Oring | 0.94" | 5.08" | 303 | 1850 | 2870 | 19 |
| 5958060 | 103-1029 | 11.4 | 1/2" NPTF | 0.94" | 5.08" | 303 | 1850 | 2870 | 19 |
| 5958024 | 103-1038 | 13.7 | #10 SAE Oring | 1.14" | 6.28" | 243 | 1700 | 3265 | 20 |
| 5958064 | 103-1030 | 13.7 | 1/2" NPTF | 1.14" | 6.28" | 243 | 1700 | 3265 | 20 |
| 5958028 | 103-1039 | 18.2 | #10 SAE Oring | 1.52" | 6.66" | 192 | 1500 | 3641 | 21 |
| 5958068 | 103-1031 | 18.2 | 1/2" NPTF | 1.52" | 6.66" | 192 | 1500 | 3641 | 21 |
| 5958032 | 103-1040 | 22.7 | #10 SAE Oring | 1.88" | 7.02" | 153 | 1300 | 4004 | 22 |
| 5958070 | 103-1032 | 22.7 | 1/2" NPTF | 1.88" | 7.02" | 153 | 1300 | 4004 | 22 |

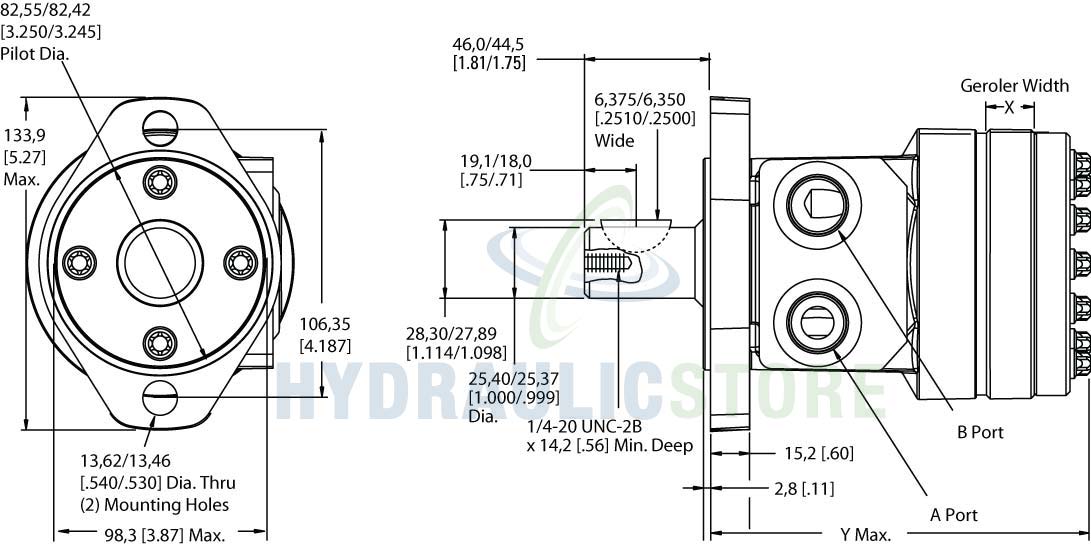

S Series Hydraulic Motors - 2-Bolt Mount
• ‘S’ Series Char-Lynn Gerolor Motors • Available in SAE Oring or NPTF Ports • ‘A’ Port Pressurized = CW • ‘B’ Port Pressurized = CCW • Applications include but not limited to: agricultural augers, harvesters, seeders, car wash brushes, food processing, railroad maintenance equipment, machine tools, conveyors, industrial sweepers and floor polishers, saw mill works, turf equipment, concrete and asphalt equipment, skid steer attachments. • Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerolors. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components. • Dual Rotation • 15 GPM Max
