Stock Number |
Mfr. Number |
Cubic Inch Disp |
X |
Max GPM |
Max RPM |
Max PSI |
Torque (lb-in) at max PSI |
Rot. | Ship Wt. |
|---|---|---|---|---|---|---|---|---|---|
| 5956107 | 129-0001 | 0.50 | 4.09" | 4.5 | 1992 | 2030 | 141 | Dual | 4.4 |
| 5956108 | 129-0002 | 0.79 | 4.21" | 5.5 | 1575 | 2030 | 225 | Dual | 4.6 |
| 5956109 | 129-0003 | 1.21 | 4.38" | 5.5 | 1043 | 2030 | 333 | Dual | 4.8 |
| 5956110 | 129-0004 | 1.93 | 4.68" | 5.5 | 650 | 1750 | 446 | Dual | 5.0 |

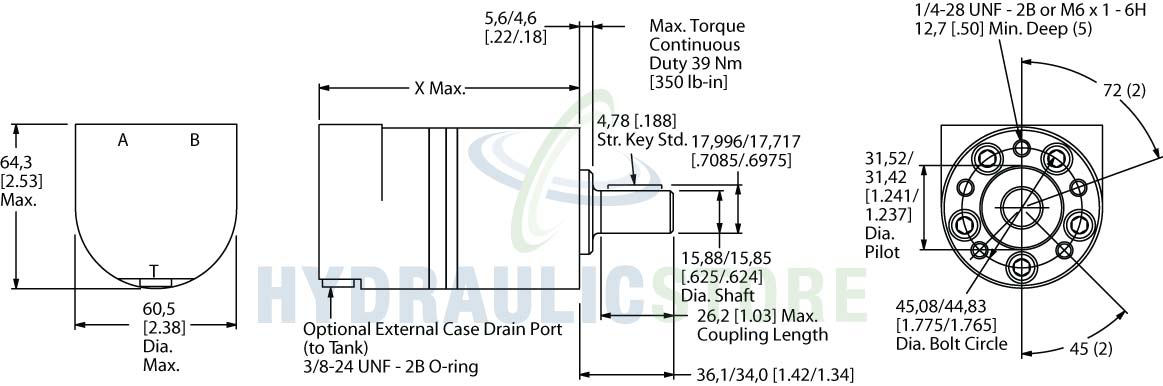

J Series Hydraulic Motors - Rear Ported
• ‘J’ Series Char-Lynn Geroler Motors • A & B Ports are #6 SAE Oring • Case Drain Port is #3 SAE Oring • 5-Bolt Mounting Pattern • ‘A’ Port Pressurized = CW • ‘B’ Port Pressurized = CCW • Use Case Drain When Return Line Pressure Exceeds 360 PSI • Applications include but not limited to: agricultural augers, harvesters, railroad maintenance equipment, conveyors.
