• P350, P1000 and P2001 feature 2 speed operation • Pressure relief valve for overload protection • Load release valve for single acting cylinder usage • Large oil capacities to power a wide range of cylinders and tools • All hand pumps function in horizontal positions and some vertical positions • Maximum working pressure: 10,000 psi • All pumps are shipped with oil in the tank.

Fig. A

Fig. B

Fig. C

Fig. D

▼ Click HS number for price

		Similar to				Disp. Per Stroke
HS Nbr	BVA Nbr	Enerpac #	Power Team #	Simplex #	Capacity	1st Stage	2nd Stage	Effort (lbs)	Outlet Port Size	Fig	Ship Wt.
8013031	P601S	P-39	P23	P41	36.6 in3	0.15	None	109	3/8" NPT	A	15

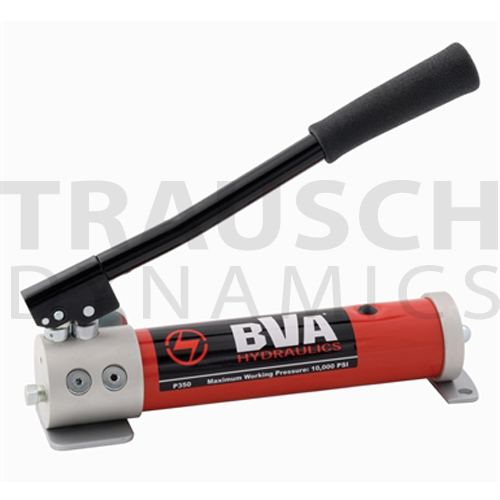

8013025	P350	P-142	P19	P42	21.4 in3	0.18	0.05	87	1/4" NPT	B	8
8012707	P1000	P-202 & P-392	P59	P42 & P82	61 in3	0.81	0.14	131	3/8" NPT	C	16
8013028	P2001	P-84 & P-80	P157	P140 & P82	122 in3	0.81	0.14	131	3/8" NPT	D	23
